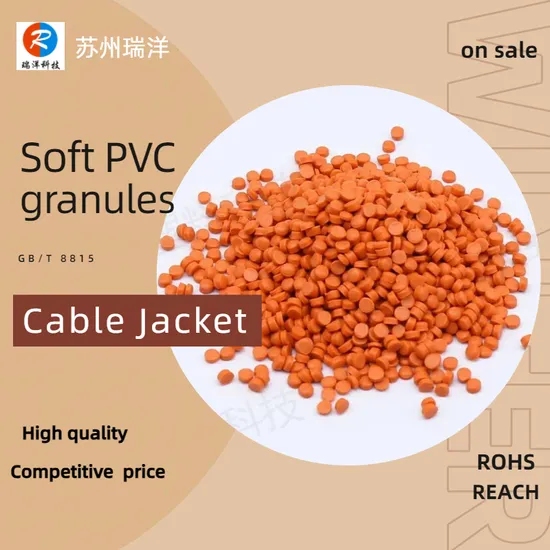

Eco-Friendly Plastic Virgin Wire Cable Jacket PVC Compound

Product Description

Product Description:

This series are granular compounds which are manufactured through mixing, plasticizing and pelletizing processes. They regard advanced PVC resin as the basic raw materials, and add plasticizer, stabilizer and other accessory ingredients.

Characteristics and Application

These products have good mechanical and physical property, electrical property and excellent processing performance. They meet RoHS Standard and all their properties comply with GB/T 8815. They are suitable for the soft jacketing of 70ºCcables.

Processing Indicator

Recommend to use single-screw extruders with L/D= 20-25.

Machine Barrel Temperature	Molding Temperature
145-165ºC	165-175ºC

Physical and Electrical Properties

No	Item	Unit	RY-H7031VC	RY-H7032VC	RY-H7033VC	RY-H7034VC
1	Tensile Strength	MPa	≥15	≥15	≥15	≥15
2	Elongation at Break	%	≥180	≥180	≥180	≥180
3	Thermal Deformation	%	≤50	≤50	≤50	≤50
4	Thermal stability time at 200ºC	min	≥50	≥50	≥50	≥50
5	Volume Resistivity at 20ºC	Ω.m	≥1.0×108	≥1.0×108	≥1.0×108	≥1.0×108
6	Dielectric Strength	MV/m	≥18	≥18	≥18	≥18
7	Brittle Temperature with Impact	ºC	-25	-30	-35	-40
9	Thermal Aging Performance	ºC*h	100±2ºC×168h
	Tensile Strength After Aging	MPa	≥15	≥15	≥15	≥15
	Tensile Strength Variation	%	±20	±20	±20
	Elongation After Aging	%	≥180	≥180	≥180	≥180
	Elongation Variation	%	±20	±20	±20	±20
	Mass Loss	g/m2	≤23	≤23	≤23	≤23

Package, Transportation and Storage

Package: 25kg per bag, inner PE film and outer kraft paper bag and pallets
Transportation and Storage: Cable materials should not be exposed to the sun and rain during transportation. They should be stored in a clean, cool, dry and ventilated warehouse and also should be handled and carried gently. The shelf life is 6 months.
Ten pallets for a 20'FCL

Company Profile

We,Suzhou Ruiyang Plastic Technology Co., Ltd is a professional manufacturer with 10 years experience in the cable materials in China. We mainly manufacture and supply a series of PVC, LSZH cable materials, special wires &cables materials and cross skeleton etc., which are widely apply for all kinds of cables,such as the communication cables with CMX, CM, CMR, CMP grades ,automotive wires which meet the international standards of the US, Japan, France, and as well as the CL standard of Volkswagen and Porsche and so on. Our company has passed the ISO 9001:2000 quality management system certification . All our products can meet the compliance of ROHS and REACH .The current production capacity is about 2,000,000 kilograms per year.
We own a strong technical research and development team, adhering to the development concept
of "scientific and technological innovation, quality first, customer first" which go all out to
provide customers with good solutions from beginning to end.
We have own IM/EX right, our products with high quality and competitive prices.

Workshop

Test Equipments

Certificate& Test reports

FAQ

1. Are you trading company or Manufacturer ?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
2.What can you buy from us?
PVC Granules,LSZH granules,Polyethylene,HDPE Granules,LDPE Granules,Cross skeleton, Nucleating agent and other Plastic Granules.
3.Why choose us?
We are a professional manufacturer .We can offer very competitive prices and high quality for all our products.
4.Do you provide samples ? Is it free or extra ?
Yes, We can offer samples below 25kgs, but customers have to bear the shipping cost.
5.How long is your delivery time?
5-10 days. Only when the quantity exceeds 10000kgs delivery time will be agreed by negotiations.
6.Do you accept customization?
Yes,All products can be customized for different requirements.
7.What are your payment terms ?
We'd like to use T/T as the terms of payment. L/C terms can be communicated.
