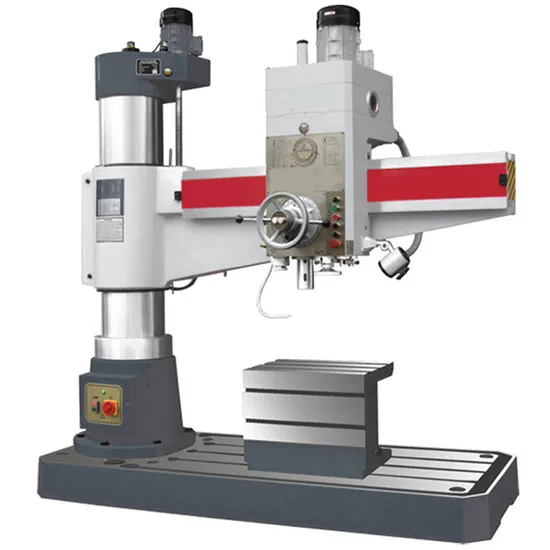

China Vertical Radial Arm Drilling Machine 50mm 40mm
Basic Info.
Model NO.
Z3050X16/1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
4
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Capacity
50mm
Distance Spindle Axis to Column
350~1600mm
Spindle Taper
Mt5
Spindle Travel
315mm
Spindle Speeds Series
16
Range of Spindle Feeds
0.04-3.2
Dimension of Worktable
630×500×500mm
Dimension of Base
2400×1000×200
Overall Size
2500×1060×2650mm
Power of Main Motor
4kw
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
10PCS/Month
Product Description
China Vertical Radial Arm Drilling Machine 50mm 40mmFeature:
1. Gather mechanical-electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual,power and fine feeds.
3. The feed of machines are very easily engaged and disengagedat any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the head stock easy operation and change.
6. Clamping for assembli-es and speed change of spindle achieved by hydroulic power, cmle is sensitna owet nelile.
7. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead chuck
* Tapping chuck
* Grease gun
Model CODE NO. | Z3040X16/1 | Z3050X16/1 |
| Max.Drilling capacity (mm) | 40 | 50 |
| Distance spindle axis to column generating line (mm) | 350-1600 | 350-1600 |
| Diameter of column (mm) | 350 | 350 |
| Spindle taper | MT4 | MT5 |
| Spindle travel (mm) | 315 | 315 |
| Spindle speeds range (r/min) | 25-2000 | 25-2000 |
| Spindle speeds series | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.04-3.2 | 0.04-3.2 |
| Spindle feeds | 16 | 16 |
| Max.Distance spindle nose to working surface of base (mm) | 350-1250 | 320-1220 |
| Dimension of worktable (mm) | 630×500×500 | 630×500×500 |
| Dimension of base (mm) | 2400×1000×200 | 2400×1000×200 |
| Overall Size (mm) | 2500×1060×2650 | 2500×1060×2650 |
| Power of Main motor (KW) | 3 | 4 |
| G.W/N.W (kg) | 4500/3500 | 4300/3500 |
| Packing dimension (cm) | 270×112×258 | 270×112×258 |
