CNC Double Column Vertical Lathe Machine Ck CNC Lathe

Product Description

Double Column Turning And Milling Vertical Lathe C5231 Manual Vertical Lathe Machine
Heavy Duty large vertical turret lathe
Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.
Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
What Is The Application Field of Vertical Lathe? DRC has strong technical force, the advanced production equipment, and the perfect administration system. Our productions have good quality, advanced technology.These single & double column lathe and NC vertical lathe have gained perfect praise by consumers since put into market.

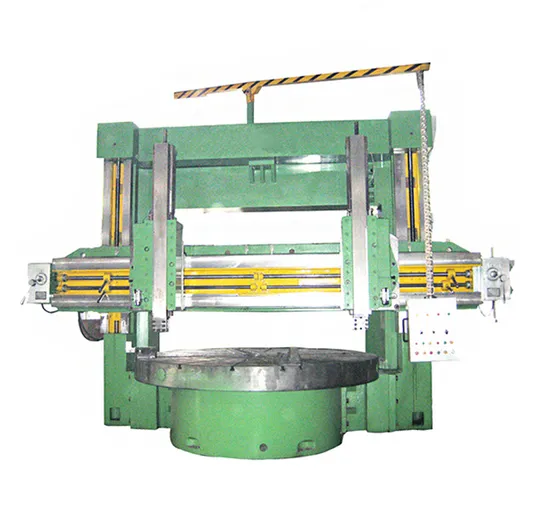

Double Column Vertical Lathe Machine
1. It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
2. It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3. Spindle bearings use domestic famous-brand company products.
4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.
Based on excellent processing equipments, strong technical force, perfect inspection way, and inpectable management system. Baili Machine has passed National ISO9001:2008 Quality Management System Certification.

Double Column Manual Vertical Turret Lathe:
CNC Vertical Turret Double Column CNC Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.
Technical Introdution:
1.Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.
2.Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
3.Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
CK5225 heavy duty double column vertical lathe(CNC type)

Parameter	c5231CK5231
Maximum cutting workpiece diameter	3100mm
Maximum turning workpiece diameter	3100mm
The workbench diameter	2600mm
The artifact maximum height	1600 2000mm
Maximum weight of the workpiece	8000k
Rest maximum cutting force head right	3000kg/nm
Rest maximum cutting force left head	2500kg/nm
The maximum cutting force	5500kg/nm
The workbench maximum torque	5500kg/nm
The workbench variable series	Two levels of stepless
Table speed range	2-50 r/min
Feeding series	Stepless
Feed range	0.25-90mm/min
Beam trip	1250/1650mm
Tool post stroke level	1600mm
Tool post stroke vertical	750mm
Beam movement speed	350mm/min
Rest fast moving speed	1560mm/min
Rest the maximum turning Angle	±30°
Knife party size(width x height)	30×40mm
Main motor power	306kW
Machine tool appearance size(L X WX H)	3500×5500×3950mm
