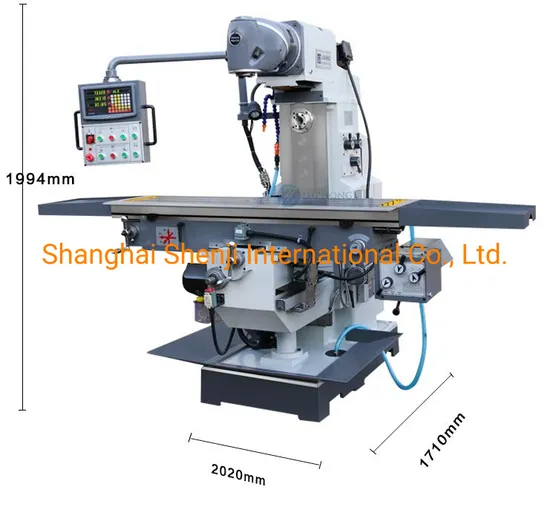

X6432 for Metal Hmt Rotary Head Hobby Milling Machine Manual

Product Description

X6432 For Metal Hmt Rotary Head Hobby Milling Machine Manual The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Specifications	Units	X6432
Table size	mm	1500x320
Table travel	mm	1000/320/400
T-slot numbers / width /space	mm	3-16-60
Spindle taper		ISO40(V) ISO40(H)
Spindle speed range	rpm	48-1660rpm(V) 40-1300(H)
Distance between spindle nose and table surface	mm	120-520
Distance between spindle axis and table surface	mm	0-400
Range of table feed	mm /min	XY:22-555,Z:electric
Milling head swivel range	°	360
Spindle motor power	kw	3(V)/3(H)
Feed motor power	kw	1.1
Weight	kg	2100
Overall dimension	mm	2050x1750x2000
