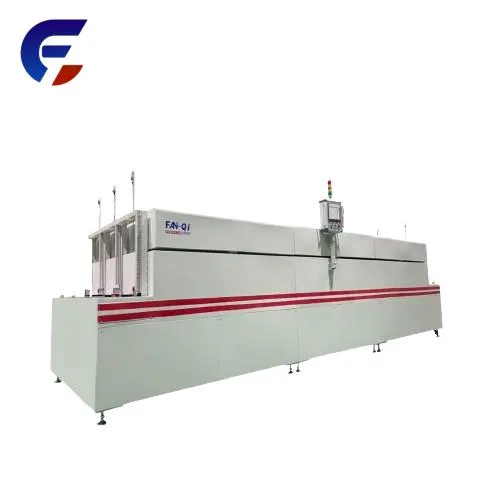

Factory Price High Precision Dust-Free Oxygen-Free High Temperature Tunnel Oven

Product Description

Product Description

Other Specification
Conveyor system	The bottom surface touches the conveyor mesh during handling. There is no contamination and scratching of the material during the conveying process. The products are transported smoothly in the furnace without shaking and jamming.
Temperature range	Max: 40 ºC -200 ºC, commonly used below 160 ºC, * temperature 200 ºC.
Temperature uniformity	Temperature uniformity of not more than ± 3 ºC (except near the feed, discharge port), constant temperature stabilisation of the empty furnace left, middle and right three points through the furnace test, the start of the air supply motor are starting to send
Heating device	The use of medium-wave quartz electric heaters, fast heating and drying firm.
Air supply mode	Hot air blowing from top to bottom, special air circuit structure design, the temperature inside the box is uniform.
Conveyor system	Adopting Tai Li speed reducer motor drive through the reducer, frequency converter, gear chain drive, composed of a complete transmission system.
Temperature outside the machine	Below 45ºC.
Control system	Siemens PLC system + Siemens touch screen can be connected to the MES system.
Weight	Sbout 800Kg/m
Power supply	AC380V 3Φ 50Hz 200KVA
CDA	10L/min 5.0~7.5kgf/cm²

Our Advantages
1. Exhaust volume MAX: 10.0M3 / Min (customers to provide the receiver outside the furnace) centralised exhaust pipe diameter ∮ 100mm * 6PCS for easy on-site installation, and the appearance of the neat and clean, exhaust temperature of 150 ºC or less.
2. PET-FILM&COVERLEN, mesh belt width 1000mm, beige special temperature and wear-resistant rubbing, 04#25 specifications, bullnose connector. The height of the conveyor surface of the mesh belt from the ground is 980±20mm.
3. The bottom surface touches the conveyor mesh during handling. There is no contamination and scratching of the material during the conveying process. The products are transported smoothly in the furnace without shaking and jamming.
4. 128K high-density aluminosilicate environmentally friendly thermal insulation cotton (white ceramic cotton) door using high-temperature-resistant silicone forced tightly sealed, no leakage elasticity.
5. Phase sequence error protection, overload protection, control line protection, abnormal emergency stop, over-temperature protection.
6. Door plate with high temperature silicone forced tightly sealed, no leakage of good flexibility.
7. Best after-sales service: one year free parts maintenance.
