Organic Fertilizer Producing Device by Aerobic Fermentation Compost Cover Compost Substrates Agricultural Machinery

Product Description

Model	Parameter
Place of Origin	Qingdao, China
Production Capacity	Customizable
Equipment specifications	100m³, 200m³, 300m³, 400m³
Voltage	220v, 380V
Minimum occupied area	105m²
Selling Units	Single set
Function	Handling organic waste, Manage manure and make organic fertilizer
After-sales Service	Online Support
Technical application field	Agriculture,farm,Family farm,Operators of composting plants,Municipal administration,Sewage treatment plant
Types of waste that can be treated	Animal excrement,Agricultural residues,Sewage sludge,Food waste,Green waste,Slaughter sludge,Food processing waste,Wood and wood waste,Vegetable tail,Biogas residue,Residual waste,Fermentation residues
subcategory	livestock machinery,agricultural machinery,kitchen equipment,agricultural equipment,solid waste treatment,poultry farm equipment,poultry equipment,small manufacturing machines,production machine,poultry husbandry equipment,equipment plant,fertilizer machine,fertilizer production machinery,pig equipment,compost machine,fermentation tank,production equipment,environmental protection equipment,organic waste machine,poultry manure composting machine,food waste processor,manure fertilizer granulator machine

Composting system
One for all - one system for everything

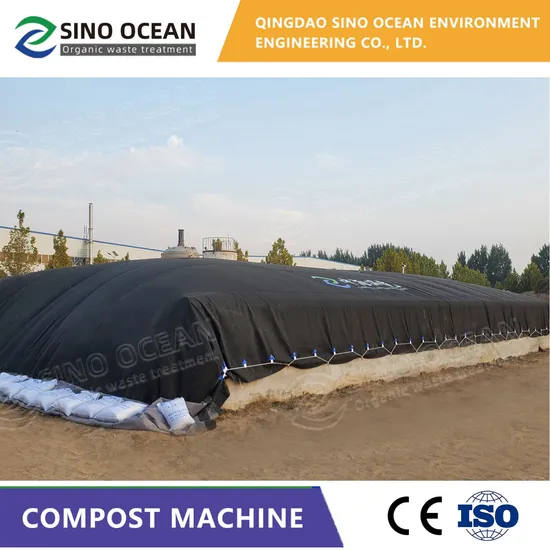

NCS intelligent molecular membrane-covered composting equipment is a composting system used for organic waste treatment.The whole equipment is composed of NCS molecular membrane (membrane cover) , air supply system, intelligent control cabinet, sensor and so on.Using aerobic fermentation method, organic matter can be composted quickly in a short time without secondary pollution.It can maximize the utilization of organic waste and convert it into organic fertilizer, nutrients, organic matter/humus.
Labour protection, odours, hygiene and system advantage
-Low costs : minimal operating costs & low construction and technical costs.
-significant odor reduction & reliable reduction of emissions.
-short process time .
-easy to operate and handle.
-short building approval as an enclosed system .
-short planning and installation times.
-Can be used in almost any climatic zone (works from -30 degrees - +60 degrees).
-Contribution to climate protection.
-Fast changeover from open to enclosed plant technology.
-Short planning and installation times.
-Fast upgrade on the same required area, fast extension of capacity.
-The conditions optimised through the NCS technology generate high temperatures in the decomposition body killing micro-organisms, germs and seeds reliably.
PRODUCT STRUCTURE
The NCS molecular membrane (membrane cover) creates a true "climate chamber" for composting, which is more cost-effective, simpler, and more flexible than closed design From the outside, the material pile is safely protected from the influence of weather and rain. Indoor, creating the best climate, microorganisms need to convert waste into high-quality compost in the shortest possible time. The computer controlled and optimized oxygen supply through fans and ventilation pipes or channels accelerates the intensive composting process to just a few weeks.

NCS molecular membrane By using this system a highly functional cover is drawn over the compost heap including a three-ply membrane consisting of two high-class fabrics resistant against UV radiation and a water-tight and breathable semipermeable membrane.
The membrane safely protects the decomposition body against weather impacts and rainwater moistening. From the inside it keeps back odours, dust, germs and bacteria but is permeable for air and moisture.
Due to the special membrane properties of ncs molecular membrane for effective control of odours and emissions, a biofilter system is not necessary.
A climate is generated under the membrane that is needed by micro-organisms to decompose organic wastes in high-class compost as fast as possible.
Control of the composting system The decomposition processes in the windrow are optimally regulated by a controlled ventilation system. The corresponding temperature and oxygen data are recorded inside the windrow by the system's high-quality measuring probes. The probes are made of stainless steel, extremely robust and biochemically resistant.
High-quality cables establish the connection to the computer-controlled networking unit. There, modern software uses the data to decide and control how much oxygen needs to be added via the aeration system. The data obtained is also stored without the need to connect to a PC.
Aeration systems The micro pressure air supply system consists of a supply fan, a supply duct, and a computer control end. Lay micro positive pressure air supply pipes and allow for 24 hours of intermittent micro aeration. The interior of the heap is in a slightly positive pressure state, which can ensure uniform distribution of oxygen, sufficient contact between air and fermentation materials, and avoid the formation of anaerobic zones. The uniform fermentation effect is good.
Project process
1. Problem definition
Do you have a problem with your current composting system? Are the maintenance and running costs too high or are you experiencing odour problems? Or are you facing an acute problem and don't know how to solve it?
2. Development of an optimal solution
Together we will develop the optimum solution for your needs.
3. Project planning
Once we've worked out the appropriate treatment system for you, it's time to plan and finalise the project. The hardware and software of the composting plant must be adapted to the specific conditions, such as climatic conditions, rotting process and compost quality.
4. Start of preparatory construction work
Once the approvals are in place, construction of the plant can begin. This is far less complex than a closed enclosure and therefore takes less time.
5. Installation of the composting technology
The next step is to install the composting technology. The aeration technology, O2 probe and temperature and pressure sensors must be fitted to the appropriate locations and installed with the software.
6. Finalising the installation and commissioning
After a successful test run, the composting plant with membrane cover is ready for waste treatment.
7. Production of quality compost
The unique NCS technology produces high quality compost from residual waste.
Qingdao Zhonghai Environmental Engineering Co., Ltd. is a high-tech enterprise focusing on the utilization of organic waste resources. The company is the market leader in semi-permeable membrane waste treatment systems. Provide a full range of environmental protection solutions for agriculture, municipal, industrial and other fields.
Our company's main products are compost machines,NCS intelligent molecular membrane-covered compost equipment,ECS eco-friendly compost bin,Organic fertilizer production line,Solid liquid separato,Fermentation auxiliary equipment,Premix equipment/crushing equipment.
With a total installed treatment capacity of more than 2,800,000 tonnes per year, Qingdao sino ocean Environmental Engineering Co., LTD is the market leader in semi-permeable membrane waste treatment systems. The company has installed more than 600 systems with treatment capacities ranging from 5,000 to 200,000 tonnes per year. As a result, the company has experience in treating a wide range of waste streams: From biowaste, catering waste and digestate to sewage sludge, green waste and residual waste treatment.The plants can be found on all continents and are exposed to the most diverse, sometimes extreme climatic conditions. Qingdao sino ocean Environmental Engineering Co., LTD has the expertise and experience in the design, supply and operation of waste treatment plants. The wide range of waste streams includes all types of organic material, municipal waste streams as well as industrial waste.
FAQ
1. Are you a manufacturer,and tell more of your company?
Yes, QingDao sino ocean environment engineering co.,Ltd is a manufacturerfocusing on independent research and development of organic waste treatment equipment. With a total installed treatment capacity of more than 2,800,000 tons per year, QingDao Sino Ocean Environment Engineering Co.,Ltd. is the market leader for waste treatment systems with semi-permeable membranes. The company has installed more than 400 plants with treatment capacities ranging from 5,000 to 200,000 tons per year. Accordingly, we have experience in treating a wide variety of waste streams: starting with organic and kitchen waste as well as digestate, through sewage sludge and green waste right up to the treatment of residual waste. The systems are exposed to a wide variety of, sometimes extreme, climatic conditions.
2. What is the advantage ofyour compost tank?
There are many advantage of it, such as small land coverage, energy saving, short period, and environmental friendly, and so on.

3. ls it a new compost equipment?
Yes, it is an innovative waste compost equipment. It gatherthe full condition which is oxygen, water, and temperature, and speed the compost. While completely fermented organic fertilizer will be produce.

4. Do you have any certificates?
Yes, we do. Our company has ISO system certifcates and CE certificate. Also we have more that 30 patents forutility models.

5. What payment terms can you accept?
We can accept TT, L/C, Western Union, Credit Card, Cash, etc.

6. What is your warranty?
We supply 1-year warranty for free service and components exchange. And after the guarantee period, we supply chargeable service.
