Automatic Self Adhesive Laminating Machine Machinery & Hardware Electric Wood 220V/380V Plc,motor Provided CN;JIA DAPENG 200kg

Product Description

Product Description

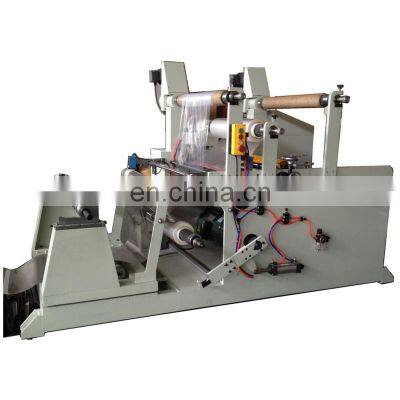

automatic self adhesive laminating machineApplication Apply to the longitudinal cutting and all kinds of industrial tape, electronic adhesive tape, pt, composite film paper, protective film and other composite materials, electronic material processing is, printing, packaging, food, pharmaceutical and other industries essential equipment. Functional Characteristics: This machine enjoys photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the feeding and receiving tension. Main machine is of frequency conversion speed regulation, and the movement of the rubber covered roller is controlled by the cylinder. Lamination and slitting can be done at one time, and also can be done solely. Enjoying characteristics such as fast slitting speed , ease of opertion and maintenance. Model650 multifunction slitting machineMax Feeding Width ( mm )650Main Engine Power ( KW )2.2Speed (M/M )80Size ( mm )2400*1700*1300Weight ( KG )1000Rewinding Diameter (mm )600Winding Diameter ( mm )450Precision ( mm )±0.10Power220V 50Hz Machine Picture and configuration list as below 2, Unwinding part Feeding Air Expansion Shaft (3”Air Shaft) 2 Setsmagnetic powder brake 50 N 1 Set Film release Magnetic Powder Brake 25N 1 SetFeeding Tension Control System 2 SetsCorrection System 1 set waste rewinding air-shaft ( 3 inch) 1 set ( with rewinding motor control ) 3, Renewal Material Laminating Part :Upper Laminating COTS Dia.80(Silicon roller) 1 SetUnder Laminating COTS Dia.80(Silicon roller) 1 SetAluminum guide roller(hard Oxygen surface treatment) 1 SetPressure roller pneumatic type top and bottom system adjustable : 1 Setelectronic counter 1 SetFilm Release tensioning adjustable system 4. Reeling endReceiving Flatulence axis(3″ air shaft) 1 Setsmagnetic powder clutch 25N 1 Setsthe receiving tension control system 1 SetsMain electrical machine (double motor) 1 SetMain Power inverter 1 SetWinding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set 5. Operator control box 1 Set6.Electric control panel 1 Set
