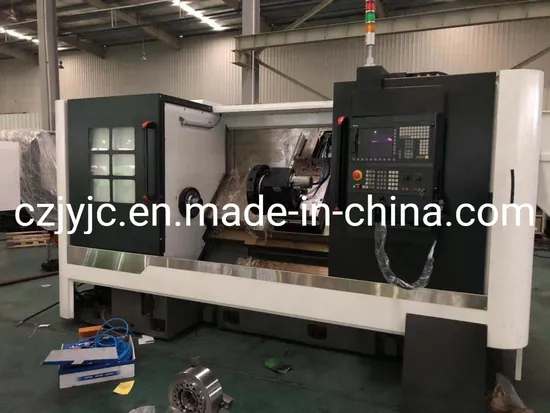

Siemens 828d Controller CNC Slant Bed Lathe Machine Ck58
| US$22,000.00-42,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK58
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
6 Station or 8 Stations or 10 Stations
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
580mm
Spindle Taper
A2-8
Main Motor
15kw
Spindle Bore
87mm
Bar Auto Feeding Bore
75mm
Distance Between Center
1320mm
Transport Package
Steel Pallet
Trademark
White eagle
Origin
Made in China
HS Code
8458110090
Production Capacity
50 Sets / Month
Product Description
Startard accessoriesTotal sealed fencing system
Solid hydraulic chuck
Hydraulic system
Lubrication system
Optional accessories
Bar feeder system
Hollow hydraulic chuck
Automatic chip conveying system
Hydraulic tailstock.
| ITEMS | CK-58 |
| Max. swing over bed | Ø 580 mm |
| Max. machining diameter | Ø 580 mm |
| Max. swing over toolpost | Ø 360 mm |
| Max.machining length | 960 mm |
| Distance between centers | 1320mm |
| Spindle nose | A2-8(Integral type) |
| Hydraulic chuck | 250mm |
| Spindle motor | 11-22Kw |
| Max.spindle speed range | 2600rpm |
| Spindle bore dia(mm) | Ø87 |
| Max.bar feeding dia(mm) | Ø72 |
| X/Z axis data | 4006/5010 |
| Max.travel of X/Z axis | 350/1120 |
| X/Z linnear guide-way data | 55 |
| Rapid travers rate X/Z | 12m/min 16m/min |
| X/Z axis positioning accuracy | ± 0.008 ± 0.012mm |
| X/Z axis accuracy of positioning repeatability | ± 0.0035mm ± 0.005mm |
| Turret and gang tools | Hydraulic turret |
| Quill diameter | Ø100mm |
| Quill travel | 120 |
| Max.tailstock travel | 1250 |
| Taper of quill | M.T.5 |
| Over size | 4170X1780X3000 |
| Weight | 5600kg |
