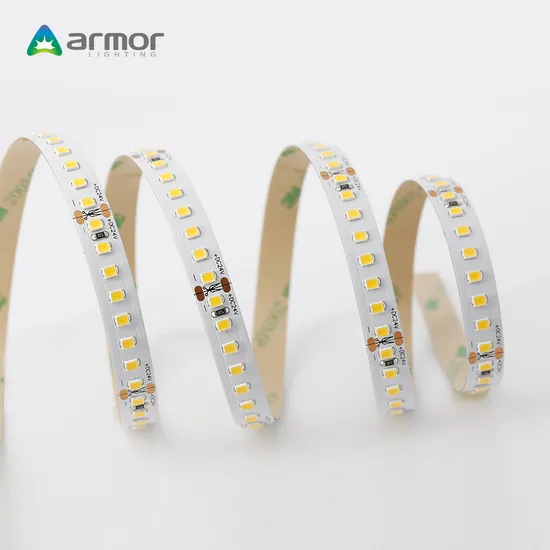

5 Years Warranty 24V 2835-160 LED Strip Light for Project

Product Description

Product Features .LM-80 approved LED .High Efficiency: 200Lm/w Max. .50,000 hours Lifetime, 5 years warranty .Multiple Color Option : 1800k ~ 10000k .Only one Bin, SDCM<3, or SDCM<2 available .CRI Option: Ra 80 as standard, Ra>90/95/97 all available
2700K 3000K 4000K 5000K 6000K
STRUCTURE
Notice: LED Strip length's length tolerance is ±0.2%mm, width tolerance is ±0.2mm. Size of each section is 50mm (1.97"), and cutting at "scissors symbol" place. Safety Input Voltage: DC 24V
Strip Code

ltem Code	LEDs/meter	LEDs/meter	Watt/m	CCT/K	Color Rendering Index	Lm/m	Lm/ft	LM/w	PCB width
MF328V160A80-D027A1A10	160	24V	14.4	2700K	80 90	2,005 1,780	611 542	139 124	10MM
MF328V160A80-D030A1A10	160	24V	14.4	3000K	80 90	2,110 1,870	643 570	146 130	10MM
MF328W160A80-D040A1A10	160	24V	14.4	4000K	80 90	2,233 1,978	680 603	155 137	10MM
MF328W160A80-D050A1A10	160	24V	14.4	5000K	80 90	2,250 1,998	685 609	156 138	10MM
MF328W160A80-D060A1A10	160	24V	14.4	6000K	80 90	2,260 2,005	689 611	157 139	10MM

Optical

LED type	SMD2835
Color rending index	160
CCT Range	2700K, 3000K, 4000K, 5000K, 6000K
Irritation angle	120°
Light Efficiency	124~157 Lm/w
Lumen output/meter	1780~2260 Lm/m (542~689LM/ft )

Electric (24V)

Electric (24V)	0.6A/m
Input Voltage	DC24V
Voltage Power/m	14.4W/m
Static Electricity	1000V(ESD)
LEDs/meter	160LEDs/m
Size of section	50mm (1.97")
LEDs of section	8 LEDs

Others

Energy grade	B
Warranty	5years
Working hour	50,000hrs lifetime for Tc<70°C
Working temperature	-20ºC ~ +45ºC
Working humidity	40%-70%RH
Measurement	L5000*W10mm
Waterproof Rate	IP20

1.LED Strip can be used in many kinds of places as decorative lighting/backlight/, such as Ceiling trough, Staircase,Hall walkway, Billboard, Advertising sign, Bridge, Shopwindow, Cabinet etc. ;
2.LED Project Strip can be 30m/roll, or 40m/roll Packaging. 100% of the lamps will be tested and keep lighting for 24h testing its quality reliability, and we also test it temperature after 24 hours's lighting;
3.LED Project Strip can be 30m/roll, or 40m/roll Packaging. 100% of the lamps will be tested and keep lighting for 24h testing its quality reliability, and we also test it temperature after 24 hours's lighting;
Waterproof Rate
IP20 - Indoor use IP54 Nano - No Color shift with high Color Consistency IP65 PU- No Lead and mercury, Strong adhesion IP65 Silicon - Anti-UV ability, never become yellow IP67 - Lead-free and mercury-free, Strong adhesion IP68 - Silicon glue with Anti-UV, never change color
CONECTION Single end power input for 5 meters
APPLICATION

Packing & Shipping Terms
Packing with Cartoon
Carton box Packing Number

Aluminium foil bag Plastic reel
1. FedEx/DHL/UPS/TNT for Door-to-Door;2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;3. Customer specified freight forwarding mode of transport
OUR COMPANY
Since 2008 Armor lighting step into the led lighting industry and focus on shelf and retail display lighting area .
Armor very experienced and advantageous in products customizing and considering more for our customers.
Armor factory is certified by IS09001 2008 and ISO/TS16949 2009.
Armor have a strong team of R&D and sales service ,and more than 200 skilled shop-workers. The sales revenue of 2018 exceeded 25million US dollars.Equipped with advanced manufacturing facilities.
Armor devotes much attention to internal management and implements 6S management in order to improve the internal operation and quality management system. Armor Lighting dedicates our-self to be a reliable supplier and partner in LED lighting industry. Armor has achieved many international certificates, including CE, ROHS, ERP, FCC, UL and PSE etc, to satisfy customers needs from different countries and regions.
FAQ
Q1: What is your minimum order quantity?A:Usually MOQ is 50m, but we also accept small order for trail.
Q2:Is a free sample order available?
A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.
Q3:How long of the lead time?
A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days.
Q4:Can LED strip be customized?
A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM.
Q5:What's your warranty?
A:We have 3 years and 5 years warranty
Q6:Do you supply sea shipment?
A: YES,We have our own shipping agency FOB Guangzhou,supply FCL&LCL.
Q7:Does your lighting equipment have CE or more certificates?
A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.
Q8:Is it possible to put our logo on your product or product packaging?
A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc.
The minimum order quantity depends on different type of strip.
