Plastic Pet Beverage Drinking Water Edible Oil Container/Can/Jerry Bottle Blow Molding Machinery Blowing Making Machine Bottle Blowing Production Line
| US$10,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BLX-6-2L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Capacity
5000-6000bph
Bottle Volume
250-2000ml
Touch Screen
Mitsubishi(Japan)/Willen(Taiwan)/Siemens(Germany)
PLC
Mitsubishi(Japan)
Photoelectricity
Autonics (Korea)
Contactor
Schneider (France)/Siemens(Germany)
Electronic Control Keys
Mitsubishi(Japan)/Siemens(Germany)
Air-Actuated Component
Airtac (Taiwan)
Transport Package
Stander Wooden Packing
Specification
5500x1800x2000mm
Trademark
Berlinshuan
Origin
Zhangjiagang, China
HS Code
8422301090
Production Capacity
5000-6000bph
Product Description

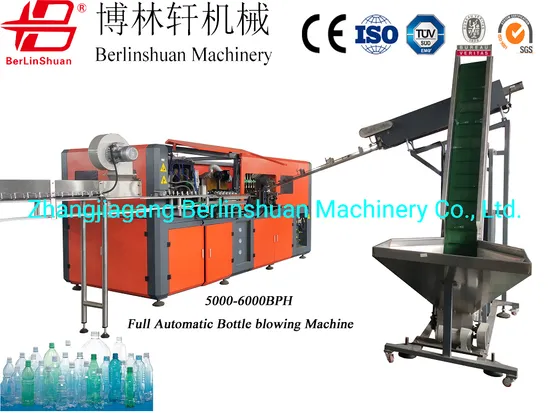

Full Automatic Bottle Blowing MachineFlow chart.
High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer -- Low Pressure Air Compressor -- Air Fiter -- Full Automatic
Blow Moulding Machine -- Mould -- Water Chiller
Bottle type specification | cavity | 6 |
| theory output (PCS/HR) | 5000-6000 | |
| Max. volume (L) | 2L | |
| Bottle mouth maximum overall diameter (mm) | 28-38mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.25kw | |
| Maximum heating power | 40kw | |
| All electric machine installation | 43kw | |
| Actual consumption | 21.5kw | |
Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600Ltr/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 3000 Ltr/min | |
Frozen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 8000kcal/hr | |
| Frozen water flow | 88Ltr/min | |
| Machine specification | Size of the machine | 5.5x1.8x2 (m) |
| Weight of the machine | 4.5ton |
Feature for PET Bottle Blowing MachineA. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the
reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a
state of safety in case of a breakdown in certain procedure.
