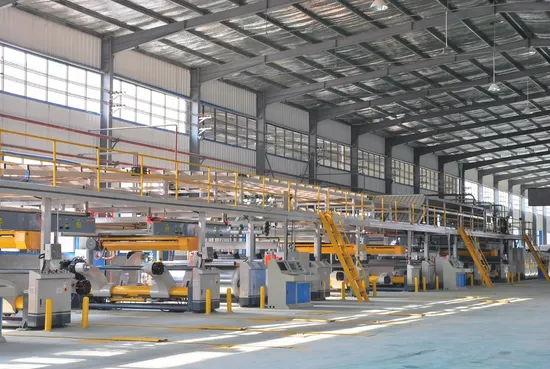

Yx-3ply Corrugated Cardboard Production Line

Product Description

:1800mm :100m/min :80m/min Working width: 1800mm Design speed: 100m/min Economic Speed: 80m/min
Name	Configuration	Qty
HS-B HS-B Hydraulic Mill Roll Stand	,,,,,. 6000mm,. Hyperbolic heavy rocker arm, teeth type head, double point brake, hydraulic drive lift, left and right translation, centering. The length of the guide rail is 6000mm, and the medium plate welding is used.	3 3sets
SF-MW10 SF-MW10 Cassette type single facer	,Ø 280mm,,,,,PLC,. Cover adsorption cassette type quick changeable.Alloy steel roller Ø 280mm,Importation famous bearing, frequency conversion motor, electric glue width, PLC automatic control amount of glue,Using proface touchable interface display operation, Machinery Car.	1set
Roller fast changing unit	,Ø280mm ,,,,,,. 1 set of spare cassette fast changing unit, flute roller and Ø280mm, alloy chromium coated, wallboard & flute roller cover , inner suction fan housing , rotary joint, steam package, mechanically changing roller trolley, etc.	1 1set
TO-B TO-B Single-layer Heavy-duty Over-bridge	,, ,,,,. 1 set of frequency drive paper tractor, heavy channel steel, single layer single corrugated paper storage section in wave shape, adsorption expansion, electric deviation correction, one set of each control panel over and under the bridge ,convenient for operation	1 1set
PH-B PH-B Single Pre-heater	Ø600mm,320° Ø600mm,,with preheated wrap angles electrically adjusted in 320°	2 2sets
PH-B PH-B Double Pre-heater	Ø600mm,320° Ø600mm,,with preheated wrap angles electrically adjusted in 320°	1 1set
PM-10C PM-10C Single Gluer	215mm,,,PLC, Gluing roller diameter :215mm, With shaft loading , independent variable frequency drive, PLC tracking speed to adjust the glue amount automatically ,man-machine interface touch screen	1 1set
DF-C DF-D Double Facer	:600mm×10,,,,. :4000mm,,. :,Ø600mm,. Bonding &Drying section: heating plates 600mm*10pcs, full hot section pressed by pressure shoes, auto lifting cotton belts, pneumatically tension, auto correction. Cooling section: length 4000mm, intensive heavy duty pressure rollers for pressing, manual correction; Driving part: Universal joint drive, driving roller Ø600mm, The whole machine has thermal insulation shield.	1 1set
Thin-blade Slitter	,58,,. Electrical blade adjustment, 5 blades and 8 scorers, electrically transverse shift correction, manual waste blower entrance.	1 1set
SC-12E SC-12E NC Helical Cut Off	KEB,10.4,,±1mm. German brand KEB servo drive, 10.4-inch touch screen display, helical knife structure, Max cutting error ±1mm	1 1set
RF-10A RF-10A Square Stacker	Electrically transverse output.	1 1set
Glue making system	,,,,. Consist of a carrier tank, a main body tank, a storage tank, a circulating rubber box and a circulating glue pump. wherein the pipeline client owned.	1 1set
Air compression system	0.6m³,,, Air storage Tank 0.6m³; pressure meter, steam separator, the air source provided by user.	1

:100m/min :80m/min Max. mechanical Speed: 100m/min Economic Speed:80m/min :1800mm :±1mm :±1mm Working width: 1800mm Slitting accuracy: ±1mm Cut-off accuracy: ±1mm (UVUVV): () Flute Profile: UV or UVV shape; up to the customer : The raw paper used in line speed test should meet the following requirements:
*B *9%±1%
*110-180g/ *90-160g/ *80-160g/
*Grade of Raw Paper ≥B *Water Rate of Raw Paper: 9%±1%
*Surface Paper: 110-180g/ *Core Paper:90-160g/
*Corrugated Paper:80-160g/ :16kg/cm² :10-12kg/cm² :1700kg/Hr Steam: Max. pressure 16kg/cm²; Common used pressure 10-12kg/cm²; Saturated steam dosage: 1700kg/Hr
6. :AC380V 50Hz 3PH :120KW :90KW
Electricity demand: AC380V 50Hz 3PH
Installed capacity: Around 120KW
Normal power: Around 90KW
7. :9kg/cm² :4-8kg/cm² :11000L/min
Compressed air: max. pressure 9kg/cm ²;
Common pressure: 4-8kg/cm ²;
Dosage: 11000L/min
8. :65():70m×8.2m×4.8m
Production Line Length: Around 65 meters (in terms of the foundation drawing);
Space Usage: 70m×8.2m×4.8m
9. :.
Flow Direction: According to the workshop, ensure the controlling side be right or left.
