Single Facer Machine Corrugated Cardboard Fingerless Type Single Facer

Product Description

Corrugated paper making machine electric heating single facer 2 layers corrugated cardboard machine

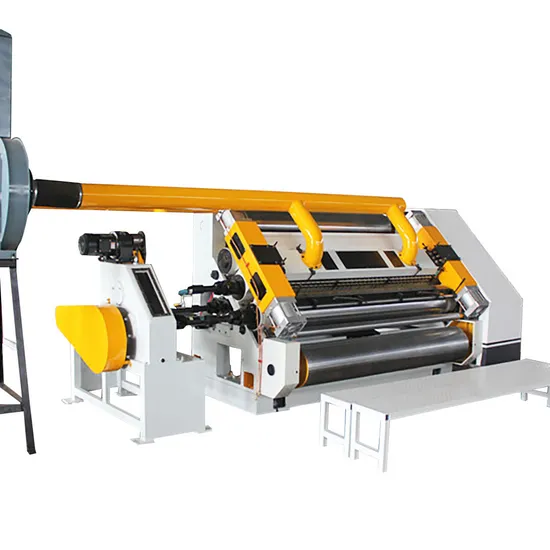

SF280-1600 single facer machine
INSTRUCTON AND FEATURES
1. Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
2. Available width:1400/1600/1800/2000/2200 mm
3. Flute type: A, B, C, D, E, F,G UV
4. Corrugated roller:φ280/300/320/360/380mm
5. Drive using chain drive
6. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
7. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
8. It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer; air source and electric control are in one cabinet
9. The machine wall made by cast iron and thickness 130mm
10. The corrugated roller materials 50CrMo alloy, the inner hole is fine bored, tempered and finish turned and the surface is medium-frequency quenched, CNC polished and fine grinded and hard chrome-plated.
11. The corrugated roller diameter ¢280mm; Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
TECHNOLOGY PARAMETERS

Model	SF280-1600
Working width	1600 mm
Heating way	electric
Flute type	A B C D E F
Operate direction	Left or right according to customer's factory
Designed speed	100m/min
Economic running speed	0-40m/min
Temperature range	160-200ºC
Air source	0.4-0.8Mpa

Detailed Photos Finished product Company Profile
customer visit
After Sales Service
Exhibition
Packaging & Shipping
Q: Are you a factory or a trading company? A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you'd like an online factory tour. Q: How do you ensure your quality? A: 1. Trustworthy and long-term cooperative raw material suppliers; 2. Skilled&experienced engineer&workers; 3. Mature QC system; 4. Specially-assigned merchandiser; 5. Advanced production workshop. Q: How about your after-sale service? A: 1. Special after-sale team will be 24/7 online; 2. Can guide the installation door-to-door; 3. One-year warranty for spare parts.
