Automatic High Speed 500ml Pet Plastic Bottle Making Blowing Moulding Machine Manufacturer

Automatic High Speed 500ml Pet Plastic Bottle Making Blowing Moulding Machine Manufacturer

US$5,500.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
q6000
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Color
Orange
Cavity
4
Bottle Material
Pet
Power
1.25kw
Output
5000-6000
Weight of The Machine
4.5ton
PLC
Mitsubishi
Driven Type
Pneumatic
Transport Package
Wooden Package/According to Customer′s Request
Specification
CE ISO SGS
Trademark
Eceng
Origin
Zhangjiagang Jiangsu
HS Code
8477300000
Production Capacity
100per Year

Product Description

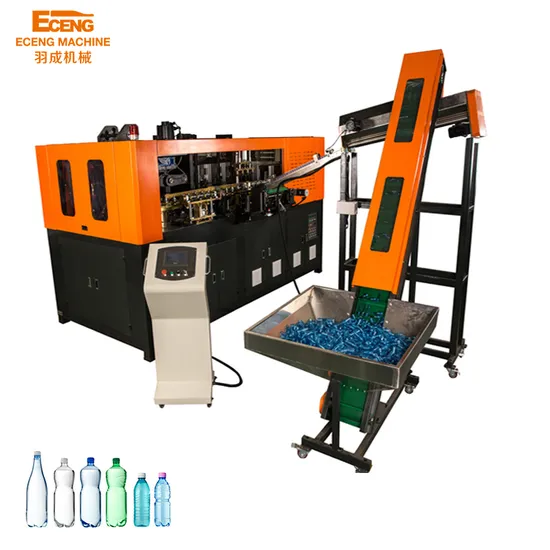

automatic High Speed 500ml pet plastic Bottle Making blowing moulding machine manufacturer
model:q6000 Main Features:
Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .


Technical parameter
Item Q6000
Bottle type specification Cavity 4
Theory output 5500-6500
Max. volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Light tube power 1KW
Maximum heating power 32KW
All electric machine installation 42KW
Actual consumption 25KW
Air pressure specification Work pressure 7-9kg/c
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/c
Higher -pressure gas consumption 3000Ltr/min
Frozen water specification Work pressure 5-6 kg/c
Temperature range 10ÂșC
Consumption 8000kcal/hr
Frozen water flow 138L/min
Machine specification Size of the machine 4.1x1.6x1.9
Weight of the machine 3.9ton

Product Details: 1,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
2,New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
4,Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
THE AFTER-SALE SERVICE OF ECENG MACHINE!
After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
After the commissioning, we will package the equipment by standard export package for shipment.
According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
SEE ECENG MACHINE HOW TO ENSURE THE QUALITY!
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
Each component before assembly needs strictly control by inspecting personnel.
Each assembly is in charged by a master who has working experience for more than 5 years
After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
