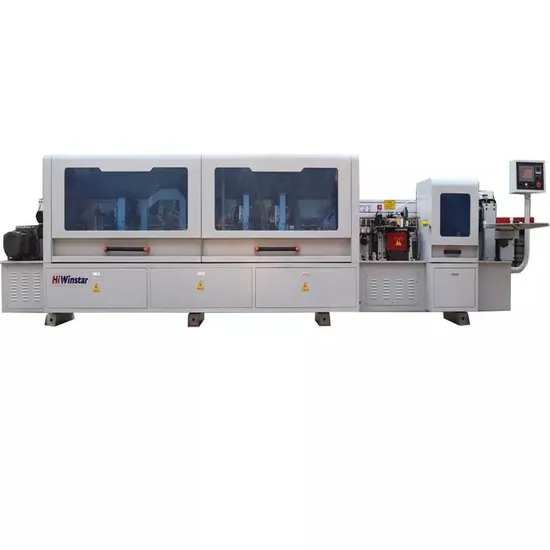

Woodworking Automatic Double glue Pot Narrow Edge Banding Machine

Product Description

Woodworking Automatic Double Gule Pot Narrow Edge Banding Machine
Product Description

Model	WS486J
Overall dimensions	7900*910*1540mm
Min Panel Side	300(L)*60(W) 150(L)*150(W)
Feeding speed	15-23m/min
Edge thickness	0.2-3mm
Panel Thickness	10-60mm
Panel Length	≥150mm
Panel Width	≥60mm
Working Air Pressure	0.6Mpa
Weight	2950kg
Total Power	24.1kw

Automatic premilling edge banding machine function
pre milling-gluing and pressing-end cutting-rough trimming-fine trimming-corner trimming-scraping-slotting- buffing
Advantages
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
Application
The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.
Detailed Pictures
Edge Banding Effect
Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years ****** trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
