Core Sand Mixer Manufacturer, Continuous Resin Sand Mixer Same Structure as Omega
| US$8,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
S24
Application
Powder
Application Area
Metallurgy&Mineral
Certification
CE, ISO
Condition
New
Stirring Type
Spiral
Warranty
12monthes
Working
High Speed Mixer
Colour
Optional
Price
Discount
Material
Metal
Applied Range
Mixing Resin Sand
Business Type
Manufacturer & Trading Company
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Wooden Box
Specification
ISO
Trademark
BESTECH
Origin
Qingdao Shandong
HS Code
8474390000
Production Capacity
400sets Per Year
Product Description
Company Information:
QINGDO BESTECH MACHINERY CO.,LTD own the strong development real strength, the forerunner's production craft, perfect examination means, the management system of science. The conduct and actions casts the professional production factory house, technique, quantity and the automation level etc. of the machine profession to all be placed in the domestic to go together the advanced level of industry.
Product Description

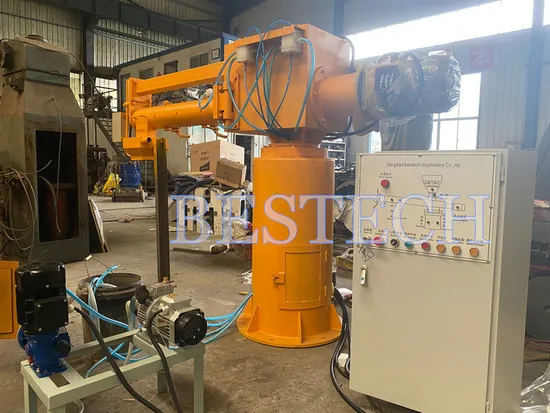

S24series single arm sand mixer
The mixing arm has a frame structure supporting two half shells, which form the mixing tube. These are split length-ways and are hinged at a single point behind the sand inlet. This opening arrangement gives easy access to the mixing shaft and blades for maintenance and cleaning. The mixing tube may be fitted with are movable wear lining (optional). It has a mixer shaft with removable/interchangeable forged steel blades with tungsten carbide plates on every wear face.
| Model | S245 | S2410 | S2415 | S2420 |
| Productivity (t/h) | 5 | 10 | 15 | 20 |
| Diameter (mm) | Φ203 | Φ219 | Φ225 | Φ250 |
| Rotation rate (r/min) | 960 | 970 | 720 | 730 |
| Motor power (kw) | 4 | 7.5 | 11 | 15 |
| Gyration radius (mm) | R2000 | R2000 | R2000 | R2000 |
| Binder quantitative accuracy | <±2% | |||
If you are any interested in our foundry sand mixer , Please contact us freely .
Warmly welcome to visit our factory! Our team waiting you for here!
