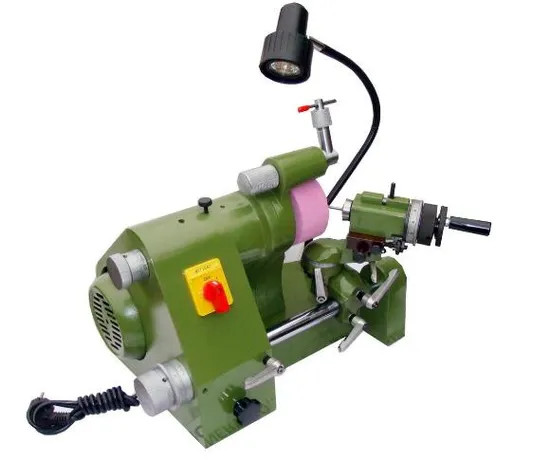

MY-20A U2 Mini Portable Universal Tool Grinder Machine
| US$355.00 | 1 set (MOQ) |
Basic Info.
Model NO.
MY20A
Abrasives
Abrasive Belt
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Normal Precision
Condition
New
Girnding Machine
Belt Grinder
Spindle speed
5200rpm
Max.claming Diameter
φ 3-16mm
Table angle ground
0-180
Gross weight
50kg
Transport Package
Standard Plywood Pakcsge
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84589900
Production Capacity
50 Sets/ Month
Product Description
Specifiction:| universal cutter grinder | M-20A |
| Cup wheel diameter-thickness-bore | 4"x2"x3/4" |
| Spindle speed | 5200 r.p.m |
| Collet capacity | 1/8" to 5/8" |
| Longitudinal traverse of index head carrier | 5-1/2" |
| Fine longitudinal adjustment travel of index head carrier | 3/4" |
| Taper angle | 0° to180° |
| Negative taper angle | 0° to 52° |
| Relief angle | 0° to 44° |
| Motor | 1/4hp, 3400 r.p.m |
| Net weight | 60Kg |
| Overall dimensions | 48x39x36.5 cm/18"x14"x14" |
| Collets | 1/8". 3/16", 1/4", 5/16", 3/8" 1/2", 5/8" |
| Stone wheel: | 4"x2"x3/4" |
