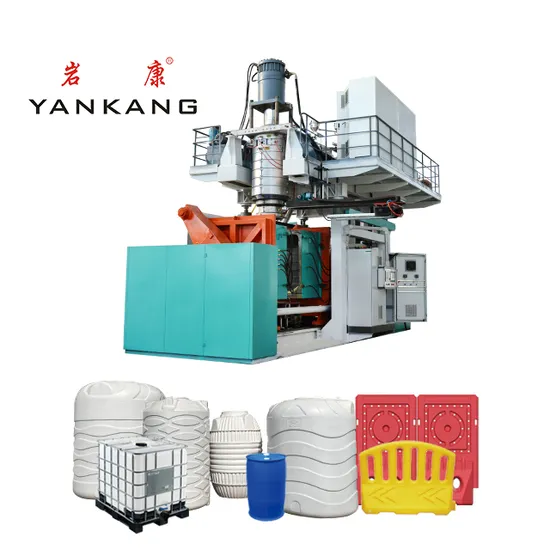

Yankang 1000L 3 Layer Extrusion Blow Moulding Machine Plastic Container Machines

Product Description

Technical Parameter of 1000L Machine 1000L water tank blow molding machine can use 300L, 500L,700L and 1000L blow molds.

Capacity	Product	Unit	Weight	Thickness
300L Tank	18-20	PC/H	4-5KG	2-2.5mm
500L Tank	16-18	PC/H	6-10KG	2.5m
750L Tank	14-16	PC/H	10-15KG	2.5-3m
1000L Tank	10-12	PC/H	16-20KG	3-3.5mm

Technical data for YK 1000L series

1000L blow molding machine
Model No.		YK 1000L-2	YK 1000L-3	YK 1000L-4	YK 1000L-5	YK 1000L-6
	Specifications	2 layers	3 layers	4 layers	5 layers	6 layers
Extruders	Screw Diameter	∮100/100	∮90*3	∮80*4	∮80*5	∮80*6
	Motor	55/55kw	45*3kw	37*4kw	37*5kw	37*6kw
	Plasticizing Capacity	350 kg/h	350kg/h	350kg/h	350kg/h	350kg/h
	L/D	30/1	30/1	30/1	30/1	30/1
	Max Screw Speed	60 RPM	60RPM	60RPM	60 RPM	60 RPM
Die Head	Accumulator Capacity	45L	45L	50L	50L	50L
	Heating Load	72.7kw	76.7kw	67.8kw	67.8kw	74.8kw
	Max. Parison Weight	33kg	33kg	40kg	40 kg	40kg
Clamping Unit	Clamping Platen Size	1600x1500mm	1600x1500mm	1600x1500mm	1600x1500mm	1600x1500mm
	Max Mould Size	1400x1600mm	1400x1600mm	1400x1600mm	1400x1600mm	1400x1600mm
	Clamping Force	800 KN	800 KN	800 KN	800 KN	800 KN
	Mould Thickness	950-1350mm	950-1350mm	950-1350mm	950-1350mm	950-1350mm
Hydraulic System	Hydraulic Drive Motor (Main)	42kw	42kw	42kw	42kw	42kw
	Hydraulic Drive Motor (Parison Control)	7.5kw	7.5kw	7.5kw	7.5kw	7.5kw
	Oil Tank Capacity	1000L	1000L	1000L	1000L	1000L
Machine Weight		30 Ton	32 Ton	36 Ton	40 Ton	44 Ton
Dimension	L x W x H	9m*4.5m*5.2m	9m*4.5m*5.2m	9m*12m*5.2m	9m*12m*5.2m	9m*12m*5.2m
Total Power		287kw	338kw	348kw	412 kw	476kw
Average Power Consumption		130kw	160kw	195kw	210 kw	245kw

Blow Molding Machine Introduction Details
1. Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the blow molding machine to operate easy,more intelligent .
2. Adopt progressive hydraulic system by ourselves,easy to control.
3. Adopt servo motor to control the hydraulic system,saving a lot of energy.
4.The technology of Die Head is same with Germany.
5. Adopt new integrated Multi-layers die head design. from one layer to six layers,support for productions of pallets and road barriers at same time. Special Design-Customized Service
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.

After-Sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines (free of charge) in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

Sales Network
Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 60 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.
FAQ:
Q1: How Long is the warranty on the machine?
A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary machinery?
A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.
Q3: How about quality control in your factory?
A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water, electrical, machine layout in the factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers as well.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.
Q7: Mold trial will be available in the Yankang factory?
A7: Yes, the customer can send the mold to the Yankang factory and test it.
Q8: Do you provide any spare parts with the machine?
A8: Yes, Yankang will provide one set of standard spare parts to customers.
