Laser Cleaner Metal Derusting Machine 1500W 2000W 3000W 6000W Handheld Fiber Laser Cleaning Machine for Paint Coat Graffiti and Metal Rust Removal

Product Description

Product Description
Laser cleaning equipment is a new generation of high-tech surface cleaning products. It is easy to install, control, and implement automation. With Simple operation, switching power supply, open the device, then it can be achieved cleaning without chemical reagent, medium and water washing, it has many advantages of the focus adjustment manually, joint surface cleaning, higher cleaning surface cleanliness, it also can remove the surface of resin, grease, stains, dirt, rust, coating, paint on objects.

Product Parameters

NO	Description	Parameter
1	Model	KC-M
2	Laser Power	1000W 1500W 2000W 3000W 6000W
3	Laser Type	MAX / Raycus
4	Central wavelength	1064nm
5	Cable length	10M
6	Cleaning efficiency	12 m3/h
7	Support language	English, Chinese, Japanese, Korean, Russian, Spanish
8	Cooling Type	Water cooling
9	Average Power (W), Max	1000W / 1500W/ 2000W / 3000W /6000W
10	Average Power (W), Output Range(If adjustable)	0-100
11	Pulse-Frequency (KHz),Range	20-200
12	Scanning Width (mm)	10-300/500
13	Expected Focal Distance(mm)	160mm
14	Input Power	380V/220V, 50/60H
15	Dimensions	1100mm×700mm×700mm
16	Weight	170KG

Detailed Photos
QILIN Laser Cleaning Head
Using a hand-held cleaning gun design, it can flexibly respond to various objects and angles.
Easy to operate and portable move.
Raycus Laser Generator
Raycus has an efficient and professional R&D and production team, which is the top quality in China.
The lasers have higher electro-optical conversion efficiency, higher and more stable optical quality.
QILIN Controller
Strong compatibility. Multiple light emission modes.
Maintenance-free, and long service life.
Hanli or S&A Water Chiller
Specially developed for fiber laser equipment, excellent cooling effect.
Stable and reliable performance, low failure rate, energy efficient.

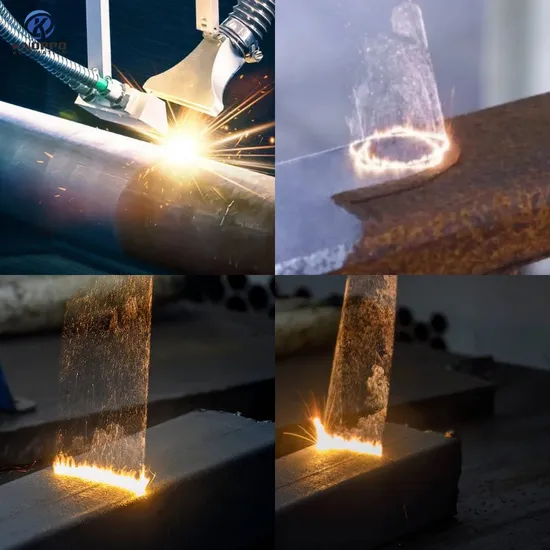

Samples
Fiber laser cleaning machine has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials.Fiber laser cleaning machine can be used to clean oxide layer, surface paint removal treatment; clean surface oil, stains, and dirt; clean rubber mold residue.Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
