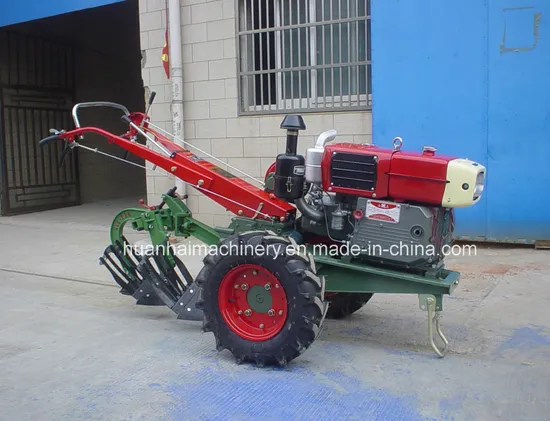

10HP 12HP 15HP Agricultural Power Tiller
| US$1,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SH121 SH151
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry, Agriculture, Livestock, Aquaculture, Fisheries, Forestry, Agriculture
Farming Policy
Dry Cultivating Machinery, Dry Cultivating Machinery
Power Source
Diesel, Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation, Soil Preparation Machinery
Traction Type
Traction, Traction
Drive Type
Gear Drive, Gear Drive
Arbor Configuration
Vertical Shaft, Horizontal Axis
Certification
ECE
Color
Red, Red
Warranty
1 Year, 1 Year
After-Sales Service
1 Year
Transport Package
Plywood Box
Specification
ISO9001
Trademark
huanhai
Origin
Shandong, China
HS Code
8701100000
Production Capacity
10000 Units Per Year
Product Description
SH121 SH151 power tiller parameter:Chassis
Type: Towing and driving
Overall dimensions (mm): 2950*980*1240
Rated traction (N): 2000
Min space from earth to face (mm): 210
Constructional weight (kg): 503(with rotary cultivator)
Clutch: Double friction flat of constant combination
Tramsmission box: 12.7(1/2'') chain of 64 links
Gear box: (3+1)*2 gear assembly type
Type of steering mechanism: Meshing sleeve
Type of brake: Cricoid inside expansion
Triangle belt: B1956 3
Capacity of lubrication: 6
Type of driving wheel: 6.000-12
Engine:
Model: S195N (horizontal, single cylinder, four-stroke, water cooled )
Bore *Stroke (mm): 95*115
Total displacement (L): 0.185
Compression ratio: 20
Rated output (kW/r/min): 9/2000
Specific Fuel consumption (g/l W/h): 258.4
Cooling system: Radiator
Overall dimensions (mm): 920*500*600
Net weight (kg): 140
