High Efficiency Vertical Paddle Blender for Heat Sensitive Product

Product Description

Product Parameters

Model	Total (liter)	Working (liter)	kW (*)	RPM (*)	L	W	H	Weight (kg)
PAM-30	30	21	1.1	150	1,200	720	1,580	500
PAM-50	50	35	2.2	134	1,239	750	1,650	580
PAM-100	100	70	3	129	1,500	800	1,700	850
PAM-200	200	140	4	104	1,730	900	1,800	1,000
PAM-300	300	210	5.5	89	1,270	880	1,560	600
PAM-500	500	350	7.5	74	1,410	1,000	1,730	700
PAM-750	750	525	11	67	1,840	1,190	2,030	1,100
PAM-1000	1,000	700	11	58	1,920	1,320	2,070	1,200
PAM-1500	1,500	1,050	15	51	2,050	1,490	2,390	1,700
PAM-2000	2,000	1,400	18.5	49	2,185	1,560	2,675	2,050
PAM-3000	3,000	2,100	22	43	2,320	1,730	2,985	2,700
PAM-4000	4,000	2,800	30	38	2,535	1,950	3,105	3,400
PAM-5000	5,000	3,500	37	36	2,740	2,070	3,355	4,100
PAM-6000	6,000	4,200	37	33	2,800	2,180	3,515	4,400
PAM-8000	8,000	5,600	45	30	3,120	2,420	3,790	5,650
PAM-10000	10,000	7,000	55	28	3,320	2,660	4,050	6,900
PAM-12000	12,000	8,400	75	26	3,480	2,700	4,255	8,300
PAM-15000	15,000	10,500	90	24	3,750	2,890	4,500	9,800

1. kW/rpm are product dependent and might vary.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
Product Introduction
Introduction
PerMix PAM series Vertical Mixer is a super innovation that combines all the advantages of precise mixing homogeneity, highly hygienic design, complete discharge with minimum residue, wide range of loading volume, robust design with long duty life and many others.
PAM Vertical Mixers are efficient and versatile blending machines for batch mixing of free-flowing powders, granules and pellets. They have been used widely in food, enzyme, cosmetics, fine chemicals, pharma, etc. Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
How It Works

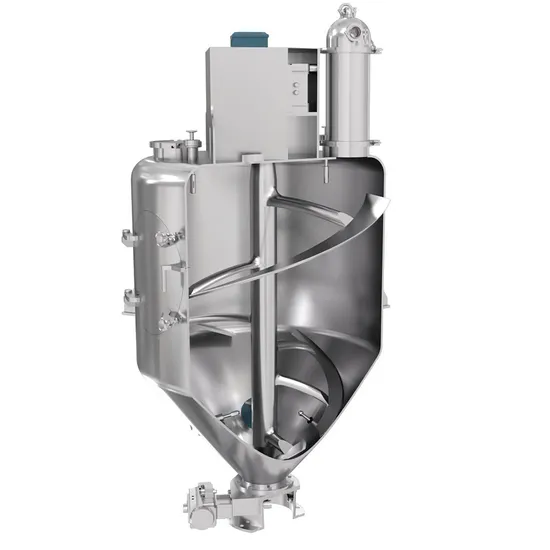

PerMix PAM Vertical Mixers are designed with a single shaft with only one ribbon, but is able to provide a multi-dimensional movement of the materials. The ribbon inside the mixing vessel moves the materials upward from the bottom to the top, where the materials then drop by gravity into the center. This generates a good counter flow of the product particles.
The ribbon design ensures that the linear speed of the particles are different from here to there, which results in a turbulence flow field. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product. A high speed chopper can be mounted to provide intensive mixing and / or lump breaking. This is very useful when liquid is added to the powdery materials and generate lumps.
The PAM mixers have a cylindrical body with conical bottom, but sometimes can be with flat bottom and scrapers to assist the discharge.
A side mounted access door is included for most of the models for inspection and cleaning purpose, and it is designed to be flush-fitting without creating blind areas for mixing and cleaning. At the bottom of the cone, there is a flush-fitting plug valve (manually or pneumatically operated) for product discharge.
AdvantagesHigh level of accuracy with minor component ratio to be 1:1,000,000Gentle mixing for sensitive materials without generation of heatChopper to be installed for intensive mixing and lump breakingLow minimal feeding volume requiredFull discharge with minimal residueEasy to clean in either dry or wet wayHigh heat transfer rate, ideal for heating or cooling process of the powders Optional Features- CIP spraying balls
PerMix PAM mixers can be designed for CIP (Clean-in-Place) with spraying balls for both the mixing vessel and the discharge area.
- Heating/Cooling jacket
Jacketed vessel for heating/cooling operation by steam, thermal oil, or water. ASME/PED certificate can be optional for high pressure operation.
- Vacuum drying & deaerating
PeMix PAM mixers can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
- Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers.
- Spray nozzle for liquid addition
Liquid can be added into the powder by spray nozzles which is installed on the top of the mixing vessel. The necessary pump and tank can also be provided by PerMix.
- Shorter version with flat bottom
PAM mixers can be designed with a flat bottom to reduce the total height, in order to fit in a limited ceiling height. A bottom scraper is mounted to improve the discharge speed and reduce the residues.
- Construction material
PerMix can offer mixers with contact part built in Carbon steel, SS304, SS316/316L, Titanium, Duplex SS, Hastelloy, etc. For abrasive materials we offer hardened steel, or the mixing elements to be coated with materials such as Tungsten Carbide.
