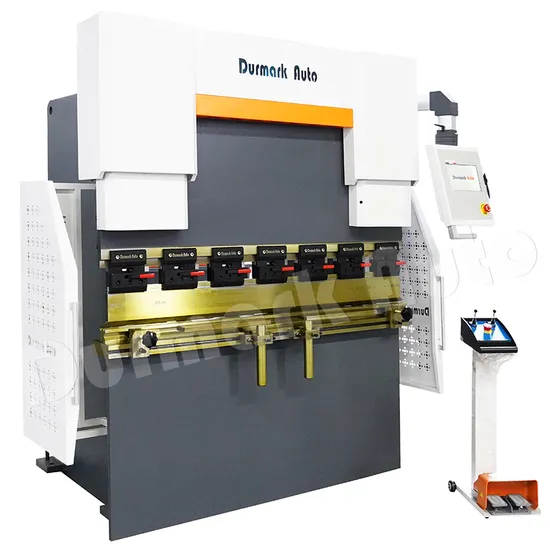

Press Brake Wc67K Da41 System Sheet Metal Bending Machines

Product Description

press brake WC67K DA41 system sheet metal bending machines Main Features 1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure
the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.
2. Thickening of the table plate, the slider, so that the machine has high rigidity and overall welding
machine frame after a one-time process, so slider ,worktable have less deformation of the work
piece while bending, and the final product have excellent straightness and angle consistency.
3. Torsion shaft synchronization mechanism for the slider synchronous mechanism and the
mechanical stopper mechanism, stable and reliable.
4. Back gauge distance, the slide stroke adjustment controlled by servo motor and CNC system.
Back gauge adopts precision ball screw, linear guide, synchronous belt wheel drive, run fast,
accurately positioning data.
5. CNC system adopts two-axis servo control technology, set and saved hundreds of bending
programs,each consists of a plurality of machining step programming.
6. Front feeding device moves lateral through precision linear guide, easily control the spacing
between the arms.
7. Adjustable height level, which greatly improves the convenience of the work piece bending.
8. With fast clamp pallet bending mold, compatible with deflection compensation mechanism,
in order to guarantee high bending accuracy (To improve the accuracy , Hydraulic convex
compensation table or Inclined wedge machine workbench compensation can be optional)
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door
cut-off function, emergency stop button around front and back, protective cover foot switch to
ensure safe working
Technical parameter

No	WE67K	Value	Unit
1	Normal pressure	630	KN
2	Worktable length	2500	mm
3	Distance between holes	1850	mm
4	Depth of throat	230	mm
5	Ram travel	100	mm
6	Max opening height	320	mm
7	Main power	5.5	KW
8	Weight	3000	KG
9	Dimension	2500*1200*1910	mm
