Sealed Fly Ash Cement Powder Silo 150t Cement Silo

Product Description

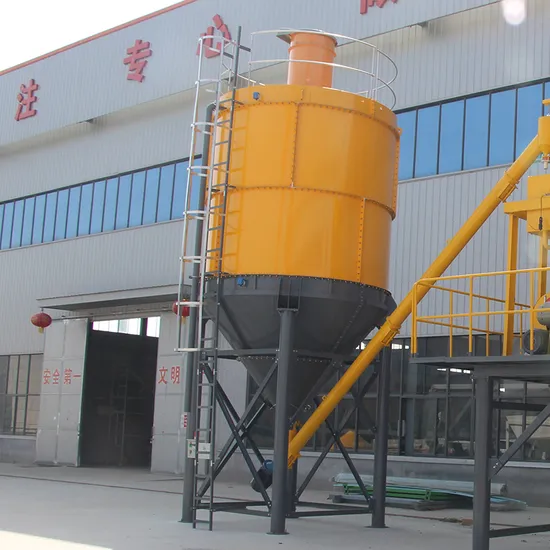

Sealed fly ash cement powder silo 150t cement silo Detailed Photos
Product Description
All models are can be customized, like Diamater, Discharge height, Total Height and the thickness of the plate, Corne, also the dust collector Model

Product Parameters

Name&Specification	Diameter	Thickness of plate	Legs	Weight	Height of silo body	Total height	Height of legs
50T	3.16m	5.4.3mm	219*5.5	4t	5.1m	13.5m	4.2m
100T	3.16m	5.4.3mm	219*5.5	6t	9.3m	19m
150T	3.6m	6.5.4mm	219*9	10t	10.7m	21m
200T	4.5m	6.5.5mm	273*7	13t	9.3m	19m
300T	5m	8.6.5mm	325*9	19t	10.7m	21m
500T	6m	8.6.5mm	426*12	26t	12m	23m
