Liftmat Low Profile Lift Table

Product Description

Product Description

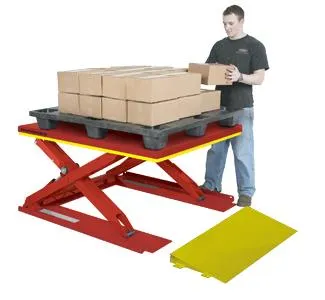

Get the advantage of four sided accessibility without the expense or hassle of digging a pit for your lift table. LiftMat Low- Profile lift tables have a collapsed height as low as 3.25 inches. An optional ramp allows the low-profile lift table to be fed with a hand pallet truck.
A full perimeter Toe Guard stops the descent of the lift table when it comes into contact with any obstruction.
LiftMat Low Profile Lift tables are best suited to applications where the load is evenly distributed.
In addition to standard platforms, LiftMat Low Profile Lift Tables can also be equipped with turntable tops. Product Parameters

Model No.	ML-010080-D2	Capacity kg	1000
Platform size mm	1350X1050	Lift Time sec	20
Min. Height mm	80	Max. Height mm	880
Model Type	stationary	Application	material handling
Color	Grey/green/ blue/others	Customized	Yes
Power Voltage	380V 50Hz	Control Voltage	24V DC

Application Fields
•Consumer Appliance Manufacturing •Printing, Publishing and Book Binding •Prepared and Frozen Food Processing
•Beverage •Pharmaceuticals •Automotive Parts
•Warehousing •Electronics Assembly •Woodworking
•Machine Shops •Retail Distribution
