High Quality 220L Plastic Chemical Barrel Blow Machine

Product Description

Company Profile
Product Description

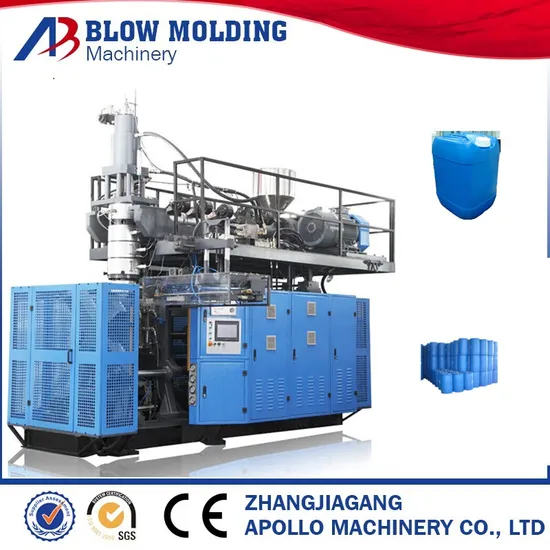

High Quality 220L Plastic Chemical Barrels Blow Machine

ABLD120 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 230L.
The features of this machine:
(1) It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 230L.
(2) Single station single die head design,very easy to operate and maintenance.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5) Accumulation die head, 100 point parison controller equipped.
(6) Bottom blow technology make the product perfect.
(7) Auto lubricant system controlled by PLC.
(8) Equipped with germany servo system , can save more than 40% power and very stable . Product Parameters

Perfect function with economic investment.

Max. Product volume	230 liters
Dry cycle	300pc/h
Screw diameter	120mm
Screw L/D ratio	33 L/D
Screw drive power	132 KW
Screw heating capacity	36 KW
No.of heating zone	6zones
Output of HDPE	320 KG/H
Oil pump drive power	37KW
Clamping force	900 KN
Max.size of mold	1400X1600mm
Mold stroke	700-1600mm
Max.die diameter	580mm
Die heating power	36 KW
Die heating segments	6zones
Blowing pressure	0.8mpa
Air volume	1.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	180 L/MIN
Size of machine	7.5 X 3.5 X 5.5m
Weight of machine	36ton
