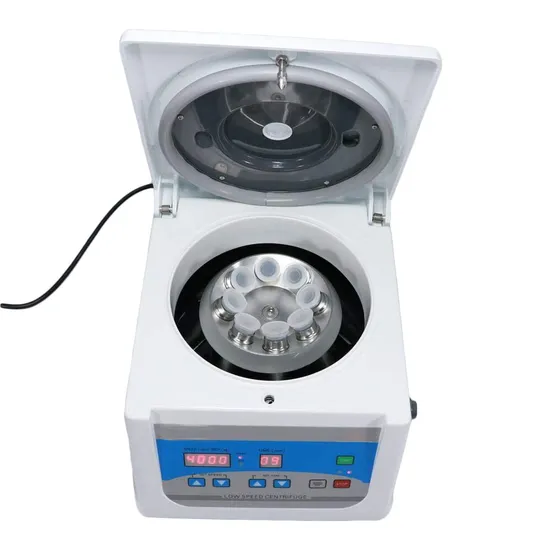

Centrifugal Force 2150g Low Speed Lab Desktop Centrifugal Machine

Product Description

Product Descriptionlow Speed Centrifuge Machine
The PRP centrifuge with aluminum 6061-T6 alloy rotor which can be less affect temperature, Laboratory-quality material with appearance, large capacity, high efficiency, small size. The electronic door lock ensures overspeed protection.Brushless motor instead of carbon brush, which provides a longer life. It adopts microcomputer control with automatic RCF calculation and setting, and digital display.Low speed benchtop centrifuges runs smoothly without vibration and noise. Using a PRP centrifuge to separate the PRP tube can give out better separation effect.Speed, centrifugal force and time can be set up for lab centrifuge, the parameters can be modified during operation to achieve a satisfactory centrifugal effect.Memorized operating parameters for convenient operation next timePlasma , sciences, beauty, medicine, food, chemical and biological laboratories.

Technical data

Material of Rotor: Aluminum Alloy

Type: Low Speed Centrifuge

Max speed: 4000r/min

Maximum centrifugal force: 2150×g

Centrifuge rotors: 8 x 10/15ml centrifuge tubes

Power supply: 110V - 240V voltage universal

Speed accuracy: ±20r/min

Motor type: Brushless DC motor

Time range: 0 - 99mins

Noise: ≤55dB

Dimension: 235mm x 240mm x 180mm

Weight: Approx 6.1kg

Package Included:

1 * PRP Centrifuge

1 * English Manual

Production workshopThe production of the lab centrifuge machine introduce
1.Start by the blanking process for the metal part
Normally the house of the centrifuge machine was made by the steel or stainless steel of type as 316
The part was beginning as the blanking
1.Laser blanking machine capacity :8000*2000*10mm
2.We had about 15 pcs of the laser cutting machine in blanking workshop ,name from No1 to No 15,
3.6S fully carry out in our workshop according to the iso13485,
4.All of the raw material can be Traceability2.Bending process for high speed centrifuge machine by the press break bending machine The press brake machine is a powerhouse in the metal fabrication industry, providing an efficient and successful method to bend sheet metal into different forms
To form the metal part into the shape we need ,the first part was by the bending press and the bending die Stainless Steel :Provides great strength and resistance to corrosion, but its greater spring back the ability to revert to its original shape after bending means that it must be handled carefully.
3.Progressive die metal stamping workshop for centrifuge machine part.Centrifuge machine need the bracket for the motor and metal stamping part for the housing and electric connect part,The progressive die stamping can give out the huge volume and low cost for the Centrifuge machine spare metal part.4.Welding workshop for the centrifuge machine The Centrifuge machine need a lot of welding ,to imporve the capacity and welding quality we introduce the welding robot machine instead of labor human welding
1.QTY of the welding robot :23pcs
2.Capacity of the welding robot :500A
3.Work station:2000*1500mm5.Plastic injection workshop for the centrifuge machinePlastic part was one part of the high speed and low speed centrifuge machine
We had about 10 sets of the plastic injection work for the centrifuge machine.
1.The capacity for plastic injection machine was :1000*850*750mm
2.The max ton for plastic injection machine was 1000T6.The spare part Warehouse for the benchtop centrifuge centrifuge machineThe 6S was fully carry out in our warehouse with the ERP system
1.We need to know how many part in our warehouse
2.We need to anticipate the part when to full fill in for all the benchtop centrifuge centrifuge machine
7.CNC machining for the benchtop centrifuge centrifuge machine rotor.The rotor was the key part for the centrifuge centrifuge ,to make it perfect especial for the high speed centrifuge centrifuge ,we need to control the tolerance of the rotor very tight,that was why we introduce the centrifuge centrifuge
1.CNC QTY:15PCS
2.Tolerance for CNC machine :0.01mm8.Electric part assemble to the high speed centrifuge machine workshop,the plc or the other computer control part connect to the machine before move to the next production procss.
9.Test workshop for the centrifuge machine All the high speed and low speed centrifuge machine need to be test before transfer it to the warehouse.Customer visitCustomer review our Laboratory Centrifuge Machine workshop,We were welcome all of our customer to visit our company to review and test the Centrifuge Machine for Organisms, Medical, Chemistry,Our business vision was :long term business ,win-win for the future
Packing and loadingThe over sea customer always concern about the packing and loading for the Centrifuge Machine,we cant bear the lost for tiny mistake for the centrifuge machine ,one mistake will cause the machine broken or cant work .
From the packing for Laboratory Centrifuge Machine to the container loading detail show as below Warehouse and stroage for the medical Centrifuge Machine,the temperature should be control within 18-25° for all equipment and test machine ,all the record can trace within 3 years.
After market serviceThe maintain and repair guarantee for the Centrifuge Machine workshop was the key to the business ,when a customer bought a machine from us ,the guarantee was the most importance things customer concern.we sent out technical service team to oversea customer site for the maintain and repair for our customer .Our service for the lab equipment was not stop after the Centrifuge Machine sold ,it was the start for our company and your company for win win situation .You use the Centrifuge Machine we take care of the rest.
ExhibitionWe take part into the MedtecChina Canton Fair (The China Import and Export Fair) exhibition every year ,hope one day we can meet each on the fair
Our visionThe supplier and the customer was togeher for the future ,both parties should be in win-win situation ,so we were looking forwarder to hold hand by hand for bright future.
