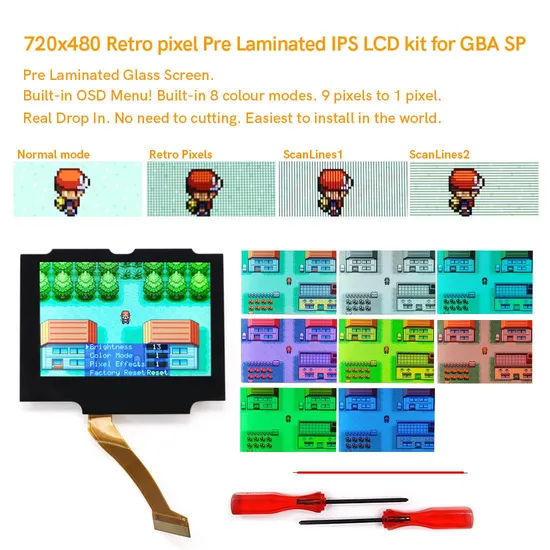

Hispeedido V5 3.0 Inch HD Drop in Laminated 720X480 Retro Pixel IPS Display for Gba Sp Console Backlight LCD Kit OSD Menu

Product Description

HISPEEDIDO V5 3" 3.0 inch HD Drop In Laminated 720x480 Retro Pixel IPS display For GBA SP Console Backlight LCD kit OSD Menu The mainboard of the console, hinges and battery are not included. The glass screen lens is with the logo.
720x480 display resolution. HD IPS LCD. 9 pixels to 1 pixel. Much better than 640*480 of other suppilers, No picture distort.
It is the newest updated version.
Product Description:
1. 720x480 display resolution. HD IPS LCD. 9 pixels to 1 pixel. Much better than 640*480 of other suppilers, No picture distort.
2. Wide View angle up to 178 degree.
3. Real Drop in IPS LCD for GBA SP. No need to cutting the shell case. Easy to install. The backlight PCB was embeded into the
metal frame.
4. Same display size as the original LCD screen.
5. Built-in OSD Menu!
6. Retro pixel Effects: Normal, Retro pixel, Scanline 1, Scanline 2.
7. 15 brightness levels.
8. 8 color modes.
9. Touch Screen to change the brightness and the color modes.
10. Laminated Glass Screen
*You need weld 1 red wire to control the OSD Menu
The 'Brightness' button can activate the OSD Menu after welding.
Menu Operation:
Short press the 'Brightness' button to change the brightness.
Press the 'Brightness' button 5 seconds to activate the OSD Menu.
Long press the button to select the adjustment item when OSD Menu activated.
Short press the button to adjust the item when OSD Menu activated.
Packing including :
1x IPS LCD, 1x red wire.
