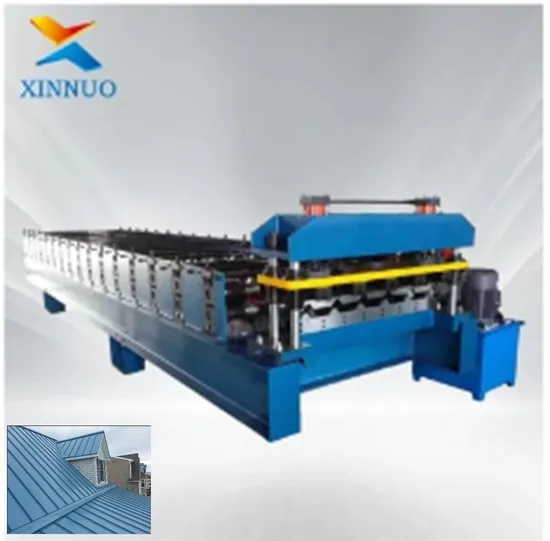

Xinnuo Ibr Iron Sheet Tile Roof Panel Making Roll Forming Machine Metal Roofing Sheets Machinery
Basic Info.
Model NO.
tile making cold roll forming machinery
Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Hydraulic Pressure
Applicable Industries
Building Material Shops, Manufacturing Plant, Cons
Video Outgoing-Inspection
Provided
Core Components
Pump, PLC
Application
industrial Building
Cutting Blade Material
Cr 12 High Grade Steel
Motor Brand
China Famous Brand
Production
15 M/Min
Rolling Thinckness
0.18-0.4mm
Machinery Test Report
Provided
Control System
PLC(Detla) System
Weight
4.6kg
Color
Client′s Request
Feature
Easy Installation
Cutting Type
Hydraulic Cutting
Warranty of Core Components
1 Year
Transport Package
Main Machine Is Nude in The Container
Specification
7.5*1.5*1.25m
Trademark
HUA YU XIN NUO, XINNUO
Origin
Buotou Hebei, China
Production Capacity
5 Set/Sets Per Month
Product Description
XN-Trapezoidal Galvanized Roof Tile Making Cold Roll Forming Machinery↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓
Product Specification
| No. | Main parameter of the machine for reference | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 760mm |
| 3 | Thickness of the plate | 0.18-0.4mm |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming | 20 rows |
| 6 | Diameter of the roller | 70mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12mov |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 16mm |
| 16 | Main structure of the machine | 350H steel |
| 17 | Weight | About 3.5T |
| 18 | Dimensions | 9.5*1.9*1.25m |
| 19 | Voltage | 380V 50hz 3phrases |
| 20 | Certificate | CE/ISO/TUV |
| Customized according to customer requirements | ||
Packing and Shipping
↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓
Company Profile
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK.
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty:
12 months limits warranty.
