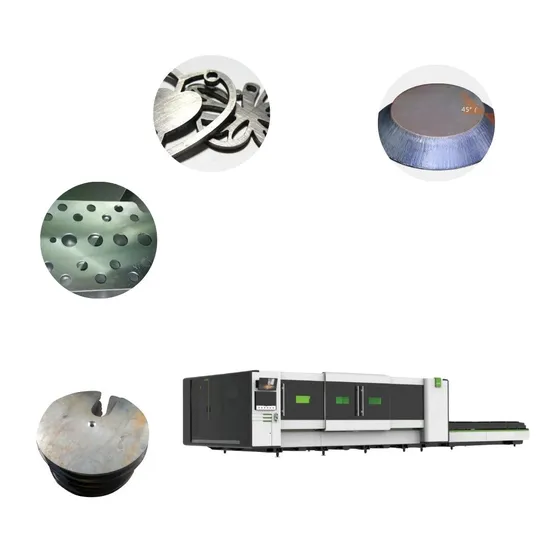

Mach Series Fiber Laser Cutting Machine

Product Description

Feature:
1.Hydraulic lifting platform, stable and efficient cutting
2.The key components are all German accessories, high-end configuration, good stability and durability;
3.Driven by high-precision servo motor, equipped with high-precision transmission mechanism, high installation accuracy, large transmission torque, small transmission error, and good dynamic characteristics;
4.Equipped with automatic energy-saving device, the machine will automatically enter the hibernation state when the equipment is suspended for more than 5min.
5.Optional CCD eagle eye recognition technology, optical eye search edge, extremely fast. Supports secondary cutting function, secondary processing is easy, and waste cutting can also be handled freely
6.Developed variable frequency cutting zoom perforation technology ensures high-efficiency and high-quality processing of plates of different thicknesses and materials. All process parameters can be fully digitally controlled, which greatly reduces manual intervention and is intelligent and simple.

Model	MACH3015A	MACH4020A	MACH6025A	MACH6525A	MACH6025B	MACH8025B
Working Area	3000x1500mm	4000x2000mm	6000x2500mm	6500x2500mm	6000x2500mm	8000x2500mm
Laser Power	1000~30000W
Platform Exchange Speed	16.5m/min
Max Positioning Acceleration	2.4G
Positioning Accuracy	±0.05mm/m
Repeated Positioning Accuracy	±0.03mm/m
Max Coordinated Speed	240m/min
Weight	10030kg	13600kg	19000kg	22000kg	17500kg	25500kg
Overall Dimension	9100x3450x2250mm	11200x3800x2250mm	15200x4400x2250mm	16500x4400x2250mm	15300x4400x2250mm	19650x4400x2250mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
