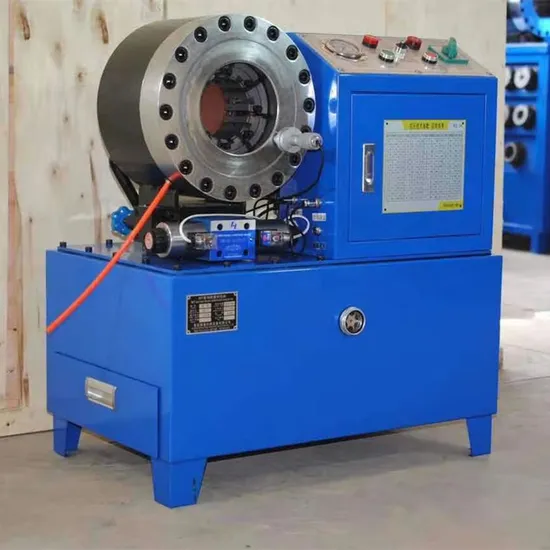

Automatic Hydraulic Shop Crimping Machine
| US$1,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY-68
Automatic Grade
Semiautomatic
Structure
Vertical
Crimping Range
6 to 51 mm
Max.Buckling Force
500 T
Dies
10 Sets
Voltage
220V/380V
Crimping Hose Layers
up to 4 Layers
Dimension(L*W*H)
730X480X740mm
Weight
260kg
Delivery Time
7-10 Days After Receiving The Payment
Color
Blue
Transport Package
Wooden Case
Specification
1/4"-2" 4sp
Trademark
JJR
Origin
Tianjin
HS Code
8462919000
Production Capacity
300 Sets/Month
Packaging & Delivery
Package Size
50.00cm * 70.00cm * 80.00cm
Package Gross Weight
280.000kg
Product Description
automatic hydraulic shop crimping machineNowadays, more and more machine have used rubber hose to transmit hydraulic pressure as working power. After crimped by the Hose Crimping Machine, the rubber hose have been used widely in almost every industrial field which involved in hydraulic pressure.
HY-68 Hydraulic hose swaging machine is widely used in the mechanical engineering at home and abroad for buckling processing of high pressure rubber pipe assembly. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and very easy to operate.
Specification:
| Crimping range | 6mm-51mm/1/4"-2" |
| Max.buckling force | 500T |
| Scale accuracy | 0.01mm |
| Rated pressure | 31.5mpa |
| Voltage | 220V/380V |
| Overall dimensions | 730(L)×480(W)×740(H)mm |
| Dies | 10 sets |
| Weight | 260kg |
crimping dies:
Packing in wooden case:
Plant:
It is worth having this machine for home shop use,making your own hydraulic hoses!
