Automatic Lubrication Sawdust Pellet Machine Pellet Mill 2.5-3.5tph

Product Description

Automatic Lubrication Sawdust Pellet Machine Pellet Mill 2.5-3.5TPH
CHINA TONY SCI-TECH
SHNADONG TONY ENVIRONMENTAL PROTECHTION SCI-TECH CO.,LTD is an intergrated enterprise spechializing in developing,anufac-turning and intenational trade of pellet equipment for over 15 years.
Main products are biomass ring die and flat die pellet machine,biomass pellet line,feed pellet machine,drying,crushing equipment,cooling screening,mixing and environmental protection equipments.
TONY main processing areas are logs or furnature waste,agricultural crop stalks,animal feces and so on.
Looking to the future, we sincerely hope to establish a long-term reliable cooperation relationship with clients all over the world.
TONY machine advantages
A:Cancel ruducer coupling,vertical motor with big fear transmission combined.Adopting motor shaft and big gear shaft
direct connection.Stronger power transmission and greater anti-torque makes machine more stable and lower maintenance ratefor reducer.
B:To increase model of reducer while motor power is lower.Bigger reducer box with bigger gear inside which has higher capacity and lower power consumpion.Reducer has longer working life,the whole machine is more stale with lower maintenance rate.
C:Adding electric control alarm device inside reducer lubrication system.The larm bell rings to stop machine immediately when the oiling is blocked.Lubrication for reducer is more intelligent.
D:Increasing few times for spindle loading parameter.Spindle design technique is more precise.Electric heating no hitting installatino makes the shpindle has longer working life.
E:Certified HH-HRB bearing which has longer working life.Maintenance rate for the whole machine is lower.
Product Description

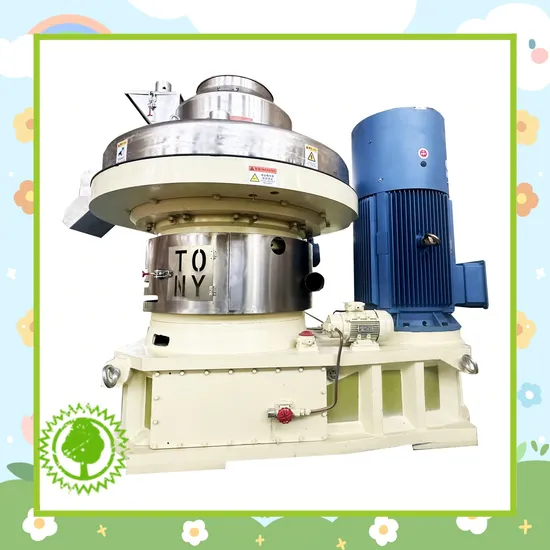

New generation vertical ring die pellet machine .Under Position Stripping System Stainless steel body ----------- TYJ760 160KW 2.5-3T/H
Product advantages
Pellet machine host
The main machine adopts Zhejiang Huixin's enlarged and widened gear box. The machine itself weighs nearly 5.5 tons, which increases the machine's torque resistance and makes the machine run more stable. The main machine discharge cover, top cover, cutter, lifting knife, and dustproof The covers are all made of 304 stainless steel, which has the advantages of high corrosion resistance and long service life. The slewing bearing and the dial reducer are placed below. The dial reducer adopts hard tooth surface, which makes the performance more stable and improves the service life of the slewing support. The cutting knife can control the final length of the particles by adjusting the knife distance.
Electric control cabinet
The electrical components in the electric control cabinet are from the well-known brand, which has the advantages of high stability and high safety:Sacron dust collector
The dust removal efficiency of the Shakron is high, and the bottom of the Shakron is equipped with a bucket for collecting dust. After collection, the pressed particles can be reusedAutomatic oiler
The automatic refueling machine adopts a new appearance, which makes refueling more intuitive, making it easier for users to observeMachine parameters

Model	TYJ760-III
Power(KW)	160
Capacity(T/H)	2.5-3
Size:L*W*H(MM)	2500*1600*2400
Weighet(T)	8500

Raw Materials for making pellets
Raw material: hard wood, waste wood and straws, woodchips(palm, mahogany,rubber tree), bamboo shavings, rice husk, peanut shells, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagasse, palm fiber.Size: Less than 5mm (All the raw materials must be crushed into sawdust before going into pellet machine.If not, you may need a wood chipper, wood crusher.)Moisture: 10-15% is best for producing good quality pellet.
Detailed Photos

Test machine
