Gr2 Gr5 Seamless Titanium Pipe Grade 9 Titanium Tube for Industrial Use

Product Description

Product Description Titanium tube is a titanium-based tube with a series of excellent physical and chemical properties. The density of titanium tube is about 60% of nickel-based or steel-based alloys, which makes it very useful in applications where weight reduction is required. The specific strength (tensile strength/density) of titanium tube is very high, with a tensile strength of 100-140kgf/mm², while the density is only 60% of steel. It can work for a long time at a temperature of 450-500ºC. The corrosion resistance of titanium tube is also excellent. Titanium tube has a low elastic modulus, low thermal conductivity, and no ferromagnetism. Titanium tubes are mostly used in aerospace, power industry, chemical industry, oil and gas industry, marine industry, automotive field, medical equipment field, environmental protection and energy field. After more than ten years of development, our company can manufacture round tubes, square tubes, other cross-section tubes, and also supports customization.

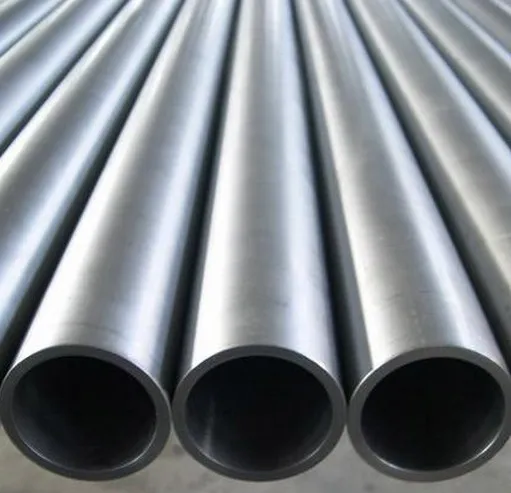

Detailed Photos
Product Parameters

Name	Titanium Tube & Pipe
Standard	ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928
Material Grade	Gr1, Gr2, Gr4, Gr7, Gr9, Gr11, Gr12, etc
Size	Length: 50-6000mm or according to customer requirements
	Outer diameter: 3-300mm or according to customer requirements
	Wall thickness: 0.2-5.5mm or according to customer requirements
Section shape	Round / Square
Tolerance	a) Outer Diameter: +/- 0.01mmb) Thickness: +/- 0.01mmc) Length: +/- 0.1mm
Surface	Pickling, annealing, polishing, bright.
Feature	1.Low Density and High Strength2.Excellent Corrosion Resistance3.Good resistance to effect of heat4.Excellent Bearing to cryogenic property5.Nonmagnetic and Non-toxic6.Good thermal properties7.Low Modulus of Elasticity
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
