Moving Column Vertical Machine CNC Gantry Milling Machining Processing Center Custom Home Handles, Radiators Making Machinery
| US$5,500.00-19,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
PIC-CNC6500
Type
Knee-and-Column Milling Machine
Object
New Energy Vehicle Battery Trays
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Taper Hole of Spindle
Bt30 Od: 100mm
X Route or Distance of Travel
2500-6500 (Other Length)
Y Route or Distance of Travel
450mm
Z Route or Distance of Travel
400 mm
Operating System
Fanuc Siemens
Transport Package
Plywood Case
Trademark
Ubright
Origin
Cn
HS Code
8457101000
Product Description
Product Description

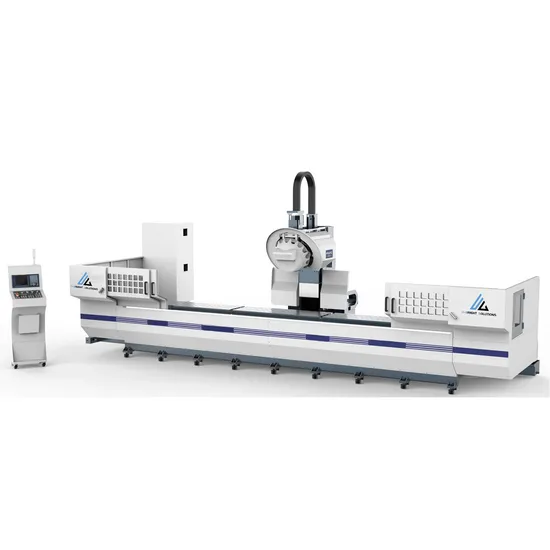

The machine for column mobile processing center, the whole machine adopts moving column, ensure the overall rigidity and compact structure, machine rigidity is good. Easy to dispose of scraps and drainage. Good precision retention, can be used for precision cutting;automotive, textile, window frame, civil aviation, motor, valve and other industries.
Applied to new energy vehicle battery trays, rail transit, mechanical manufacturing, and sheet metal processing
The PIC series is mainly used for custom home handles, radiators, TV bezels, car luggage racks, sunroof rails, trims
BT30 tapered spindle bore for the whole series, spindle outer diameter 100mm
Equipped with automatic cooling system
Equipped with disc type 16 tool magazine capacity
Large table travel, large working area, can be processed while loading
Product Parameters
| route or distance of travel | X route or distance of travel | 2500-6500 (other length) |
| Y route or distance of travel | 450mm | |
| Z route or distance of travel | 400mm | |
| principal axis | main shaft speed | 12000rpm (24000rpm electric spindle) |
| taper hole of spindle | BT30 OD: 100mm | |
| tool magazine | Knife library form | Flying saucer style |
| Knife library capacity | 16 pcs | |
| Adjacent change knife time | 2 sec | |
| translational speed | X axis shift | 60 m/min |
| Y axis shift | 28/40 m/min | |
| Z axis shift | 28/40 m/min | |
| Cut into give speed | 15000 mm/min | |
| operating system | FANUC | SIEMENS |
| Spindle drive motor | 5.5 kw | 7 kw |
| X/Y / Z drive motor | 3.0/1.8/1.8 KW | 2.7/2.7/3.1 KW |
| lube oil system | self-lubricate | |
| coolant passage | injection water cooling | |
| definition | X axis positioning is accurate | 0.05 mm (Rating 0.01mm) |
| The Y / Z is positioned precisely | 0.02 mm | |
| Repeat repeat precision (X / Y / Z) | 0.01mm | |
| rating of machine | Pressure demand | 6 kg/cm² |
| altitude | 3300 mm | |
| floor space | 4600-9000*2500 mm | |
| weight | 7000-11000kg | |
