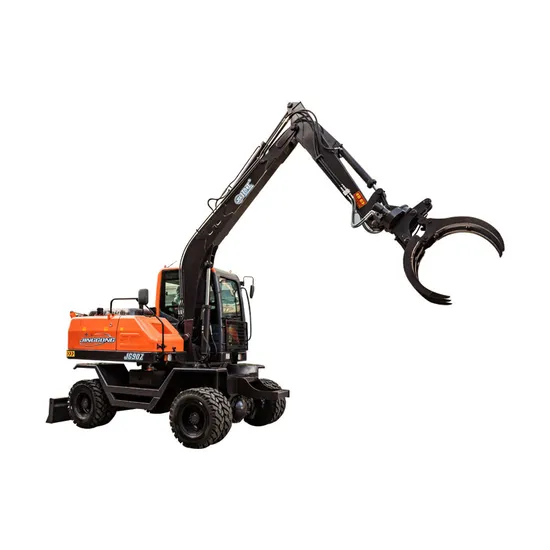

Jinggong Small Log Loaders for Sale
| US$30,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
90Z
Power Source
Diesel
Harvest method
Picking
Drive Type
Hydraulic Drive
Transmission
Intelligent Hydraulic Pilot Control
Portable Harvester Type
Loading Machine
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture, Forestry
Grapple Rotation Angle
360 Degree
Grapple Weight
600kg
Grapple Swing Speed
15r/Min
Transport Package
Naked Packaging
Specification
6000X2100x2850mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000 Units/ Year
Product Description
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom Length | 3475mm | ||||||||
| Arm Length | 1850mm | |||||||||
| Max Radius Of Capture | 6800mm | |||||||||
| Grab The Biggest Opening Width | 1200~1500mm | |||||||||
| Grab The Minimum Opening Width | 100~300mm | |||||||||
| Maximum Radius Weight Capacity | 0.5~0.6t | |||||||||
| Grapple Rotation Angle | 360° | |||||||||
| Max Dumping Height | 4700mm | |||||||||
| Back-End Radius Of Gyration | 1980mm | |||||||||
| DIMENSION | (Length*Width*Height) Travel Position | 6000*2100*2850mm | ||||||||
| Wheel Base | 2400mm | |||||||||
| Track(Front/Rear) | 1660mm/1580mm | |||||||||
| Ground Clearance Of Counterweight | 1060mm | |||||||||
| Min Ground Clearance | 265mm | |||||||||
| TECHNICAL PARAMETERS | Angle Of Rotation | 360° | ||||||||
| Machine Weight | 6800kg | |||||||||
| Engine Model | YN38GB2/4102 | |||||||||
| Rated Power | 58.8kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic System Working Pressure | 21Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Grapple Swing Speed | 12r/min | |||||||||
| Walking Speed | 25km/h | |||||||||
| Grade Climbing Ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Revolution overdrive pressure | 16Mpa | |||||||||
| Full Circle Swinging Time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
Company
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
