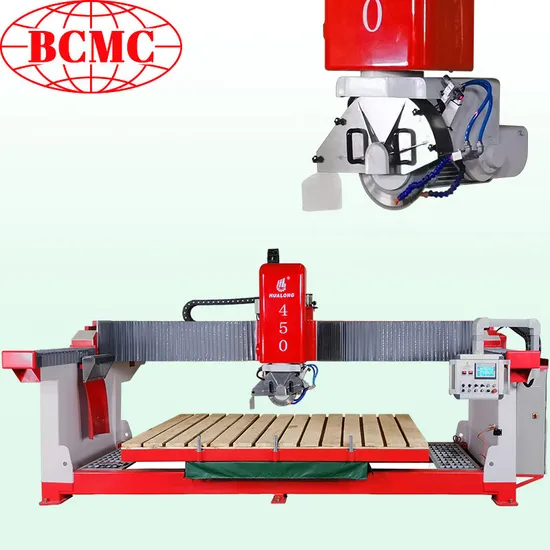

2025 Bcmc Hualong Machinery 4 Axis CNC Stone Bridge Saw Cutting Machine with PLC Control System for Marble and Granite Stone

2025 Bcmc Hualong Machinery 4 Axis CNC Stone Bridge Saw Cutting Machine with PLC Control System for Marble and Granite Stone

US$25,000.00-27,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HLSQ-450
Type
CNC Cutting Machine
Usage
Ceramics, Fire Brick, Red Brick, Granite, Marble, Quartz
Application
Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
CCC, ISO, CE
Overall Weight
5400
Work Bench Specifications
3300*2000
Control System
PLC Control
Warrenty
12 Months
Video Before Delivery
Provided
After Sales Service
Provided
Saw Blade Tilting Degree
0-45 Degree
Worktable Tilting Degree
0-85 Degree
Worktable Rotation
0-360 Degree
Branded Electronics
Yes
Transport Package
Plastic Packing
Specification
5700*3260*2765 mm
Trademark
BCMC
Origin
Putian, Fujian, China
HS Code
8464109000
Production Capacity
50 Pieces/Month

Product Description


BCMC Machinery BCSQ-450 is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handlling different kind of difficult work in one machine. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
Parameter:
TECHNICAL DATA BCSQ-450
Configuration
Diameter of saw blade
mm
Φ400 - Φ450
Dimension of working platform
mm
3300 x 2000
Power of main motor
kw
15
Power of tool slide reciprocating motor
kw
1.1
Power of crossbeam shifting motor
kw
1.5
Power of hydraulic station motor
kw
2.2
Power of elevator motor
kw
1.5
Gross power
kw
21.3
Main Performance Parameters
Max. length of horizontal cutting
mm
3300
Max. thickness of cutting
mm
100
Max. lifting travel of cutter
mm
300
Water consumption
m3/h
2
Measurement
Gross weight
kg
5400
Dimension (L x W x H)
cm
5700x3260x2765

Main Features:
* Monoblock structure for easy transport, installations and no foundation needed.
* Siemens, Schnider electric and other high quality accesories such as Hinwin linear guide are adopted.
* 0°,90°,180° and 270° automatic head rotation and blade positioning.
* Blade can tilt 45° automatically for chamfering cutting.
* Automatic cross cutting repeatedly so easy by pushing one-button.
* Manual cuts available for simple machining.
* Worktable can rotate 0-360 °,pause at every 45° automatically or stop at any degree by remote control.
* Worktable can tilt 0-85°, easy for slab loading.
Detailed Information For Spare Parts:
Control System
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.
Linear Guide
Quality linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Electric Cabinet
Quality electrics used to ensure stable performance.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Remote controller(optional)
Easy controlling the movement in 3 axes in distance conveniently
Hydraulic Giant (optional)
For cleaning the machine and keep it tidy.
Other Advantage:
1) 25 years + experience professional on making stone machines. 2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.
4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.

Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades
