High Precision Spindle Turret Lathe Machine Turret Miling Machine
Basic Info.
Model NO.
XU6325W
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Other
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Milling Machine
Table Size
1270*254mm
Longitudinal Travel
750mm
Transverse Travel
400mm
Vertical Travel
400mm
Spindle Speed Range
(V) 16steps 66-4540
Spindle Travel
127mm
Automatic Spindle Feeds
0.04/0.08/0.15
Distance Between Spindle Center and Colu
155-635mm
Distance Between Spindle Nose and Table
0-460mm
Spindle Taper
(H) Nt40
Spindle Motor Power
(V) 2.2 (H)3.0kw
Head Swivel
90 Degree
Machine Weight
1380kg
Transport Package
Wooden Cases
Specification
320X1570*1000mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
190.00cm * 180.00cm * 255.00cm
Package Gross Weight
1400.000kg
Product Description

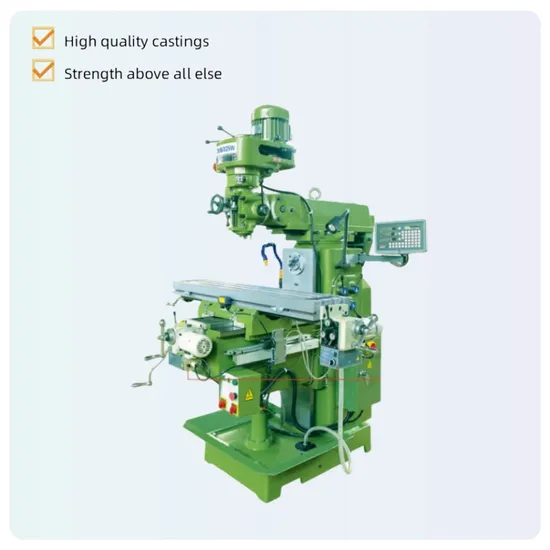

Product PictureSpecification Parameter
| Specification | Unit | XU6325W | XU6330W | XU6332W |
| Table Size | mm | 1270*250 | 1370*305 | 1570*320 |
| T SIotS(N/W/D) | 3/16/65 | 3/16/65 | 3/16/65 | |
| Longitudinal travel | mm | 750(850 manually) | 800 | 1000 |
| Cross travel | mm | 400 | 380 | 380 |
| Vertical travel | mm | 400 | 400 | 400 |
| Quill Trave | mm | 127 | 127 | 127 |
| Distance between spindle center and column | mm | 155-635 | 155-635 | 155-635 |
| Distance between spindle nose and table top | mm | 0-460 | 0-460 | 0-460 |
| Arm Travel | mm | 400 | 500 | 500 |
| Milling Head tilting | 90°(Left&Right);45°(Front&Back) | 90°(Left&Right);45°(Front&Back) | 90°(Left&Right);45°(Front&Back) | |
| Spindle taper | R8(V);NT40(H) | R8(V);NT40(H) | R8(V);NT40(H) | |
| Spindle speed | r/min | 66-4540(V);40-1300(H) | 66-4540(V);40-1300(H) | 66-4540(V);40-1300(H) |
| Power of spindle motor | kw | 2.2 kw(V);3KW(H) | 2.2 kw(V);3KW(H) | 3.75 kw(V);3KW(H) |
| Max. table safety load | kg | 350 | 350 | 350 |
| Machine Diamension | mm | 1750*1530*2340 | 1750*1650*2340 | 1950*1650*2340 |
| Net. Weight | kg | 1380 | 1550 | 1750 |
