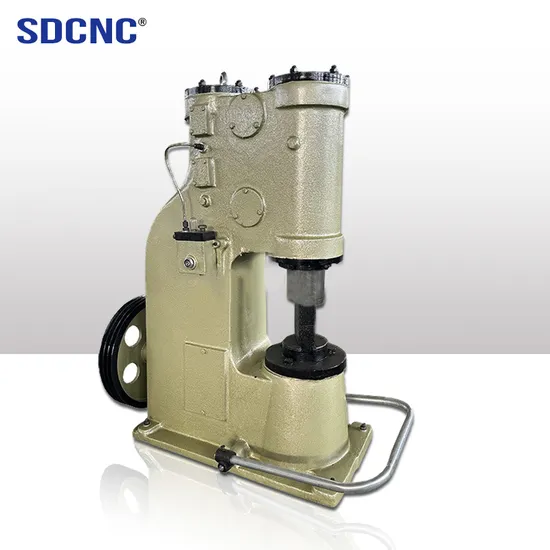

Blacksmith Power Forging Hammer Monolithic Machine Metal Forging Air Hammer
| US$2,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C41-25KG
Power Source
Hydraulic Pressure
Feature
High Efficiency
Warranty
12 Months
Customized
Customized
Advantage
Use Widely
Condition
New
Core Components
Hammer Frame
Voltage
220V/380V
Power
3kw
Working Area Height
250mm
Transport Package
Wooden Packaging
Specification
950*550*1260
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
95.00cm * 55.00cm * 126.00cm
Package Gross Weight
850.000kg
Product Description
The main performance characteristics: 1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control, 2.The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3.Simple mechanism ,Is not easy to damage
Application : Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging. Product Parameters
Product main technical specification:
| Parameter / project / model | Units | C41-40kg | C41-25kg | C41-20kg | C41-16kg |
| Blow energy | K j | 0.53 | 0.27 | 0.22 | 0.18 |
| Height of working area | mm | 245 | 240 | 200 | 180 |
| Number of blows | min-1 | 245 | 250 | 255 | 258 |
| Anvil block size | mm | 120x50 | 100x50 | 90x50 | 70x40 |
| Malleable square steel length | mm | 52x52 | 40x40 | 30x30 | 20x20 |
| Malleable circular steel length | mm | ¢68 | ¢45 | ¢35 | ¢22 |
| Match use of power | K w | 4 | Single-phase 3/220V, Three-phase 2.2/380V | Single-phase 2.2/220, Three-phase 2.2/380 | Single-phase 1.5/220, Three-phase 1.5/380 |
| Motor speed | r. p. m | 1440 | 1440 | 1440 | 1440 |
| Anvil sitting of weight | kg | 400 | 200 | 190 | 180 |
| Gross weight | kg | 1350 | 850 | 500 | 240 |
| Appearance size | mm | 1080x600x1430 | 950x550x1260 | 820x460x1110 | 585x390x950 |
