Pipe Extruder Full Automatic PVC PVC/TPR Pencil Eraser Making Machine

Product Description

CANDID automatic single color eraser making machine with stationery machine
Descriptions:
This machine is used for making TPR and PVC erasers which are commonly used in school and office, there are many kinds of erasers like single color, multicolor, heat transfer printing and carton erasers, we are capable to customize the machine producing all these different type erasers as per customer request, our machine capacity could reach 120kg/h which is very efficient.
Regarding the process, first prepare dry raw material (TPR/ PVC granular), pour the raw material into the hopper, the screw inside will do compression and grind job, simultaneously the barrel is heating the granule and make them into melting state. Then screw will press and extruding the melting granule out, pass through the water cooling channel and after cutting become the final erasers. Besides this, there are some auxiliary steps like printing logo and packing, however, for the whole process, it is very easy to handle as our machine is very automatic. Meanwhile, it does not need a big place and no matter man or women could both handle this job as it does not need heavy labor for all the work. To sum up, this is an ideal investment and we are most professional in this field and will fully support our customer.
Advantages
1. Candid eraser making machine Heating ring use cast aluminum2. We especially installed the Heating ring heat protection cover3. Candid eraser making machine is used TWIDEC (Tai wan) temperature control device4. We use international band inverter like SANKEN/HITACHI5. Cover shell: stainless steel6. Barrel heating zones: 47. Cooling way: Water cooling+ Air cooling
Technical parameter

Output	120kg/h
Screw quantity	1
Barrel heating zones	4
Heating power	15kg
Motor power	11kw
Barrel cooling way	Water +air cooling
Temperature control	0-110ºC
Current source	380V 3P 50Hz
Size of water cooling channel	400*380*800mm
Hauling-off speed	Max 700m/h

FAQ
Q: What is the raw material for eraser?
A: The raw material for eraser is PVC or TPR granule.
Q: Can you supply raw material?
A: Yes, we can supply raw material with different grade.
Q: What is electrical supply of machine?
A: Our machine normally is 380V, 3P, 50Hz, but it could be as your requirement.
Q: Could one set of machine make all color eraser?
A: No, single color machine for single color eraser; Multiple color machine for multiple color eraser.
Q: What is eraser making machine woking progress?
A: The progress as blow: Raw material >> Extruding>> Cooling>>Hauling>>Cutting>>Packing>>Eraser
Q: What is the power of eraser making machine?
A: Our eraser making machine is with different power, please refer to our quotation.
Process

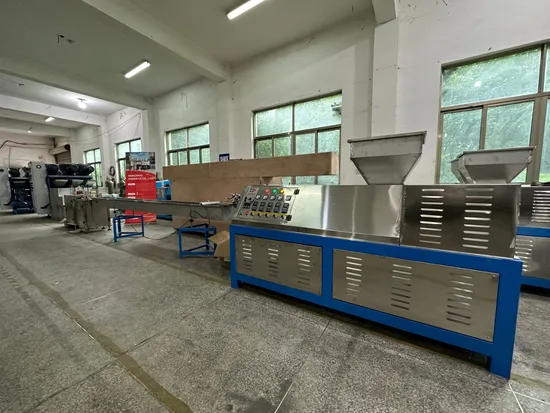

Product show
Details
Finish product
Packing and loading container
