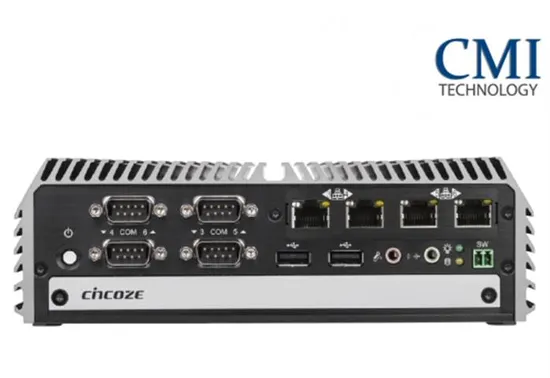

6th Gen. Intel® Core™ I7-6600u Cincoze Di-1000 Di-1000-I7 Optional I5 I3

Product Description

6th Gen. Intel® Core™ i7-6600U Cincoze DI-1000 DI-1000-i7 Optional i5 i3 • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
• 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 32 GB
• Triple Independent Display (DVI-I, DisplayPort)
• Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
• 1x Hot-swappable 2.5" SATA HDD/SSD Bay and 1x Internal 2.5" SATA HDD/SSD Bay,
Supports RAID 0/1
• Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
• Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
• Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
• Cincoze MEC Module Kits for Various I/O Expansion
• 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
• Wide Operating Temperature (-40°C to 70°C)
• E-Mark (E13, No.10R-0514273) Certified
Specifications
System
Processor
• On board Intel® Core™ i7-6600U Processor
(4M Cache, up to 3.40 GHz, 15W TDP)
• Onboard Intel® Core™ i5-6300U Processor
(3M Cache, up to 3.00 GHz, 15W TDP)
• Onboard Intel® Core™ i3-6100U Processor
(3M Cache, 2.30 GHz, 15W TDP)
Chipset
• SoC
BIOS
• AMI 8Mbit SPI BIOS
Memory
• 1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB
(2133MHz, Un-buered and Non-ECC type)
Graphics
• Integrated Intel® HD Graphics
• Three Independent Display
Audio
• Realtek® ALC888-GR
• High Definition Audio
I/O Interface
• 1x DVI-I Connector, Resolution 1920 x 1080
• 1x DisplayPort Connector, Resolution 3840 x 2160
• 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,
IEEE 1588v2 and PXE), RJ45
- GbE1: Intel I210-IT
- GbE2: Intel I219-LM
• 6x RS-232/422/485 with Auto Flow Control
(Support 5V/12V), DB9
• 4x USB 3.0 (Type-A) & 2x USB 2.0 (Type-A)
• 1x PS/2, 6-Pin Mini-DIN Female Connector
• 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block
Support 5~48V
• 1x Line-out, Phone Jack 3.5mm
• 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/O Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/O Connector, 2-Pin Terminal Block
Storage
• 2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
(One Internal, One Front Accessible & Hot-swappable)
• 2x mSATA (shared by Mini-PCIe socket) (Gen3)
Expansion
• 1x CFM Interface for Cincoze CFM Modules
• 1x CMI Interface for Cincoze CMI Modules
• 2x Full-size Mini-PCIe Sockets for Wireless & I/O Expansion
• 1x SIM Socket
Other Function
• Support CFM (Control Function Module) Technology
• Support CMI (Combined Multiple I/O) Technology
• Support Instant Reboot Technology (0.2 sec)
• SuperCap Integrated for CMOS Battery Maintenance-free
• Watchdog Timer: Software Programmable Supports 256 Levels
System Reset
Power Requirement
• Support AT/ATX Power Type
• Power Input Voltage 9~48VDC
• One 3-Pin Terminal Block Connector
• Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
Physical
• Dimension (WxDxH): 203 x 142 x 66.8 mm
• Weight: 1.65 kg
• Extruded Aluminum with Heavy Duty Metal
• Support Wall / Side / DIN-RAIL / VESA Mounting
• Fanless Design
• Cable-less Design
• Unibody Chassis
• Jumper-less Design
Protection
• Reverse Power Input Protection
• Over Voltage Protection: Protection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at
the preset level to recover
• Over Current Protection: 15A
• ESD Protection: +/-8kV (air), +/-4kV (contact)
• Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50us waveform)
MTBF
• Time: 360,145 Hours
• Calculation Model: Telcordia SR-332 Issue 3, Method 1, Case 3
• Environment: GB, GC
• Temperature: 40°C
Operating System
• Windows® 10 / 8.1 / 7
Environment
• Operating Temperature: -40°C to 70°C
(With extended temperature peripherals; Ambient with air flow;
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95% RH @ 70°C (Non-condensing)
• Shock: Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
• Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
• EMC: CE, FCC Class A, EN50121-3-2, E-Mark (E13, No.10R-0514273) Warehouse Photos
