Three Roller Mill for Grinding Product
| US$3,500.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
all models
Cutter Material
Mill
Drive
Electric
Object
Mill
Type
Roller Crusher
Product Name
Three Roller Mill
MOQ
1set
Principle
Roller Culling
After-sales Service
1year by Email or Online
Warranty
1 Year
Compressive Strength (For Crushing)
Mill
Tongs′ Features
Mill
Transport Package
Wood Case
Specification
three roller mill
Trademark
elite-indus
Origin
Anhui
HS Code
847982
Production Capacity
300PCS /Momth
Product Description

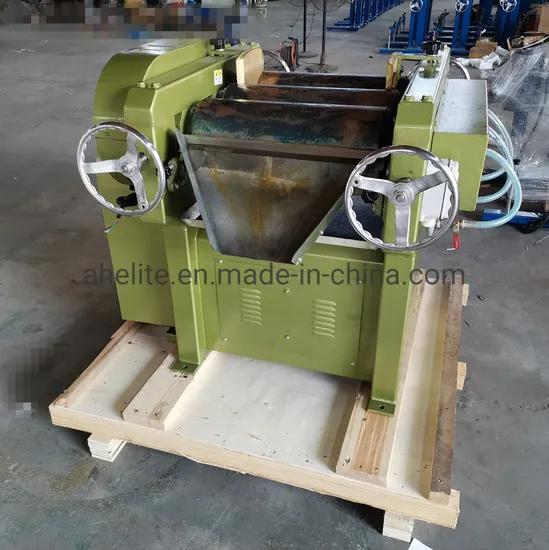

THREE ROLLER MILL for grinding productTHREE ROLLER MILL
Introduction and application: This machine is mainly used in various kinds of paints, coating, ink, plastic, pigment, food etc... It is especially suitable for grinding products with high dispersion viscosity and fine particle size. It is made of chilled gold-plated cast iron.
The crystal phase is tight. High strength, high hardness and wear resistance on the surface. There is also a cooling system. The machine selects the gap between the three rollers in the horizontal direction by rotating the hand wheel and the mutual extrusion of the roller surface and the friction at different speeds to select the effect of the grinding dispersion.
Main technical parameter
| Model parameter | S65 | S100 | S150 | S200 | S260 | S315 | SM405 | SM405L | ||
| Diameter | mm | 65 | 100 | 150 | 200 | 260 | 315 | 405 | 405 | |
| Length | mm | 125 | 250 | 300 | 500 | 695 | 755 | 810 | 1000 | |
| Roller speed | Slow | r/min | 32 | 28 | 28 | 19 | 19 | 19 | 15 | 15 |
| Mid | r/min | 59 | 66 | 66 | 55 | 55 | 55 | 45 | 45 | |
| Fast | r/min | 250 | 152 | 152 | 155 | 155 | 155 | 135 | 135 | |
| Power | kw | 0.55//0.75 | 1.5 | 2.2 | 4.0 or 5.5 | 7.5 | 11 | 15 | 22 | |
| Parametric efficiency | kg/h | 5 | 30 | 60 | 100 | 180 | 250 | 350 | 430 | |
| Dimension | mm | 400×420 ×400 | 680×600 ×700 | 820×800×920 | 1180×1350 × 1100 | 1650×1350× 1100 | 1720×1550× 1180 | 2100×1950× 1350 | 2290×1950× 1350 | |
| Weight | kg | 80 | 300 | 500 | 800 | 2300 | 2800 | 5218 | 5500 | |
