Topmac Tdcm350 Road Tow Mixer with Great Supervision of Product
Basic Info.
Model NO.
TDCM350 Concrete Mixer
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
5cbm Per Hour
Feeding Height
1370mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Blue
Drum Capacity
350L
Diesel Engine Model
Water Cooling Diesel or Air Cooling Diesel
Power Type
Diesel Engine or Electrol Motor
Colour
Yellow
Keyword
Tdcm350 Diesel Concrete Mixer
Transport Package
Nude Packing
Specification
ISO, CE, SONCAP, SGS, BV, CO
Trademark
TOPMAC
Origin
Zhenjiang, Jiangsu, China
HS Code
847431000
Production Capacity
120units Per Month
Packaging & Delivery
Package Size
230.00cm * 100.00cm * 115.00cm
Package Gross Weight
325.000kg
Product Description

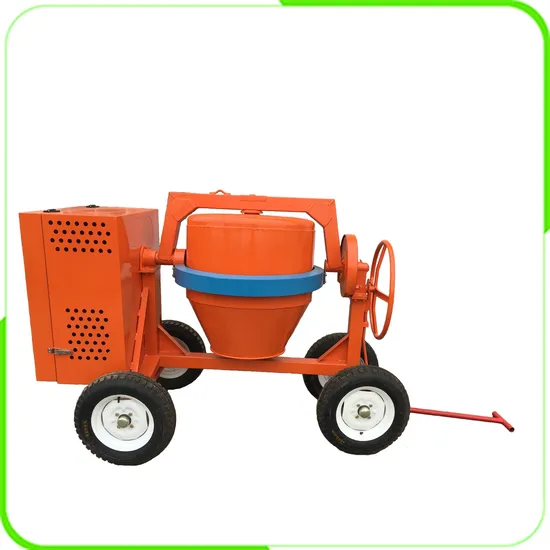

Tilting Drum Concrete MixerDuring mixing, it is very important to tilt the drum. And the raw material feeding process is suggested as follows:
Put in the water and sand first to clean off the remains of the last mix. Add the cement and turn the drum about 4 turns. The water/sand/cement mixture should be smooth and flowing evenly. Turn the drum until the color of the mix is even.
Put in the stone and turn the drum about 8 turns. Don't go too fast, let the mix fall through the mixing arms. Going fast does not make a better mix. The drum axis usually stays at an angle of about 15 degrees from horizontal during mixing.
Model:TDCM120/JZ350E
Drum capacity (litre) 350
Discharging capacity (litre)120
Towing wheel steel wheel or rubber wheel
Drive System V-Belt
Overall size (mm) 2010L1031W1413H
Weight (without engine) (kg) 260
Power Source (optional parts) petrol engine / (KAMA/KIPOR/CHANGCHAI) diesel engine / electric motor
Container loading plan: 1*20' can be loaded with 16 units or 120sets in CKD condition
1*40'HQ loads 36units.
| 120 | 120R | |
| Drum capacity (litre) | 350 | |
| Mixed capacity (litre) | 120 | |
| Towing wheel | 2- iron wheels | 2- rubber tyres 4.50-12 |
| Drive System | V-Belt | |
| Drum Type | Steel | |
| Overall size (mm) | 2010L1031W1413H | |
| Weight (without engine) (kg) | 230 | 238 |
| Power Source (optional parts) | petrol engine / diesel engine / electric motor | |
| Container loading plan (Minimum ordering quantity) | 1*20' can be loaded with 14 units or 120sets in CKD condition 1*40'HQ can be loaded with 30units. | |
