Ce Approved Automatic Webbing Cutter Machine

Product Description

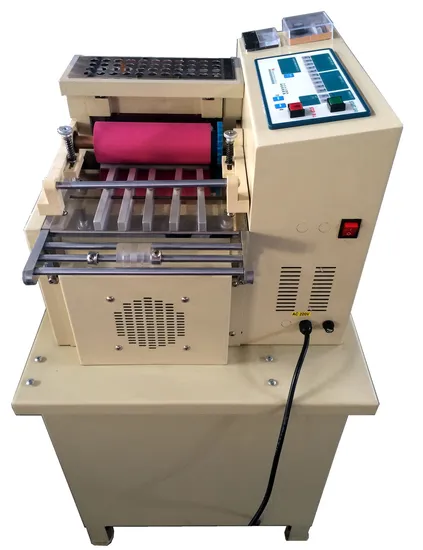

Automatic Webbing Cutter Machine
Elastic Bandage,Band,Belt,Webbing,Tape Microcomputer Belt Cutting Machine Main Technical Parameter:

Model	DP -160 Automatic Webbing Cutter Machine
Voltage	220V
Power	1/2HP
N.W.	83kg
G.W.	133kg
Cutting Length	0.1~9999.9mm
Cutting Width	1~160mm
Measurement	550x550x1000mm

Application: Sizing cutting for heat shrinking tube, flat cable, PVC sleeve, insulation paper, two-sided tape, Velcro, cotton yarn belt, zipper, etc... Features: This cutting machine employs microcomputer controller to set belt cutting length. This machine is ergonomically designed. Operation is easy. Main functions of belt cutting machine: Feed material and return material by pressing the button on touch screen Preset total cutting quantity Preset cutting length Preset cutting speed Preset cut quantity each time ( applied for hot cutting) Flash cutting quantity finished Return to ZERO After-service: 1. Warranty for machines is 12 months 2. A promptly reply within 24 hours 3. Free usage training before delivering machines in factory Knife installation

1,Clear the knife set and the relative interface by clean cotton cloth or gauze cloth
2,Assemble down cold knife on machine, make sure the blade of down cold knife
and connection board parallel , then tighten 3 fix screws of down cold knife
3,In order to install up cold knife,Please adjust the knife position to top position by manual, then install up cold knife , Don't tighten the fix screws of up cold knife
4,Please adjust planker to the lowest position by manual method, then tighten the fix
screws of up cold knife, firstly tighten middle screw, then tighten two sides screws
5,By manual adjustment knife, make sure the blades of up cold knife and down cold knife expand slowly, repeat the action several times.(In order to avoid and grand the burr of blade), then adjust the planker to the top position

Automatic Webbing Cutter Machine
