Cheap Price High Quality Big Flow Low Noise Centrifugal Electric AC Water Pump

Product Description

Pump
>> Pump casing and motor front cover: cast iron
>> Impeller: stainless steer, brass
>> Mechnical Seal: carbon / ceramic / Stainless Steel
>> AISI 304 shaft or 45# carbon steel
Motor
>> Bulit-in thermal protector for single phase motor
>> Motor with copper winding
>> Motor Housing: Steel-plate, Aluminum alloy
>> Insulation Class:F
Application
>> Household Water Supply
>> Water Supply System
>> Cooling System
>> Boost System

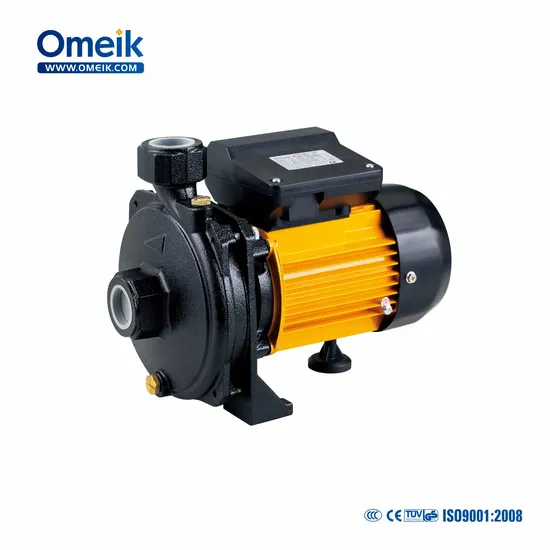

CM Centrifugal Pump
1. Self-priming: For the first time using, the entire pump chamber should be filled with water.
2. Booster: Stable and powerful pressure is controlled by pressure sensor and flow sensor.
Besides, thermal protector in motor will interrupt current when motor overheats.
TECHINICAL DATA AT 220-240V/50HZ

MODEL	POWER		MAX.FLOW	MAX.HEAD	MAX.SUCT	INLET/OUTLET	GW	PACKING DIMENSION(MM)
	kW	HP	(l/min)	(M)	(M)	(inch)	(kgs)
CM-50	0.37	1/2	85	20	9	1" x 1"	8.5	260*175*235
CM-75	0.55	3/4	90	25	9	1" x 1"	12	310*210*260
CM-100	0.75	1	110	30	9	1" x 1"	13.5	310*210*260
CM-150	1.1	1.5	120	40	9	1.25" x 1.25"	20	420*255*335
CM-200	1.5	2	130	45	9	1.25" x 1.25"	22	420*255*335
CM-300	2.2	3	140	46	9	1.25" x 1.25"	23.5	420*255*335

Note: 110V/60HZ, 115V/60HZ, 127V/60HZ, 110/220V/60HZ, 380V/50HZ ets. Models are available on request.
PACKING WAYS
SPARE PARTS:
FAQ Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: T/T, L/C
