C Shape CNC Wire Cutting Machine Expert D320C

C Shape CNC Wire Cutting Machine Expert D320C

US$22,000.00-24,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
D320C
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
1680× 1200× 2300
Trademark
TOSUN
Origin
Suzhou
HS Code
84619090
Production Capacity
1000PCS/Year

Packaging & Delivery

Package Size
1680.00cm * 1200.00cm * 2300.00cm
Package Gross Weight
2000.000kg

Product Description

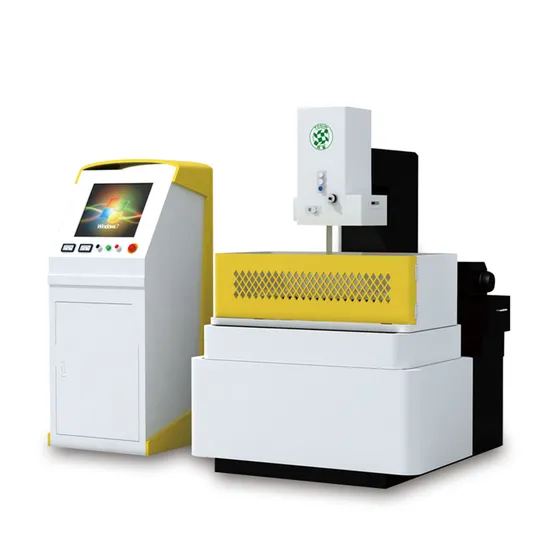

1.Equipment Photo:
2.Equipment Features:
1)Expert CNC wire cutting machine has the characteristics of high position accurancy, processing accurancy, stable processing, and high consistancy.
2)It is suitable for the processing of precision molds such as progressive die.
3.Equipment Specification:

No. Description Unit Specification

Model
D320C
1 Worktable Size (L×W) mm 450×660
2 Worktable Travel (X×Y) mm 320×400
3 Max. Workpiece Height mm 300
4 Max. Workpiece Weight kg 500
5 Machine Dimensions (L×W×H) mm 1680×1200×2300
6 Machine Weight kg 2000

4.Electrical Parameters:
No. Description Unit Specification

Model
D320C
1 Max. Cutting Speed mm²/min ≥240
2 Wire Electrode Diameter mm Φ0.08~Φ0.25
3 Machining Precision (Cutting the octagon in 10mm) mm ±0.003
4 Taper/Workpiece Height
*±6°/80mm
5 Power Consumption kw 3
6 Surface roughness μm **Multi cutting Ra≤0.6
7 High pressure water tank
Multi-stage filter system
8 Plastic water jet plate; Bronze spout
Ruby spinneret
9 Control method of Z-axis manual, transport wire tube, cooling system
Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm 3
11 Guide rail type of U,V-axis
Linear guide rail
12 Speed regulation of transport wire tube
Converter
13 Number of control axes
5
14 Power Supply
AC380V, 50Hz

*Only in the condition of new ruby guide and occasional proceeding
**Only in the condition of the material of work piece is CR12 and the height of work piece less than 100MM.
***Our company hold the authority to improve the design&specification of the products without special notification.
5. Packaging
