500000meters Per Month Iron/Wooden Spool Power Cable Copper-Clad Steel Conductor with ISO

Product Description

Bunched Copper Clad Steel Wire Conductor Application
1.Earth rod for power industry
2.Trolly wire for power transmission
3.Overhead-contact systems for railway
4.Connectors for electronic components
5.Strengthened Conductivity wire core for special cable
Our Advantages
1.Combination of good conductivity,high tensile strength and welding property of copper
2.Highdensity,good extensibility thus saving copper resource and cost.
Product Description

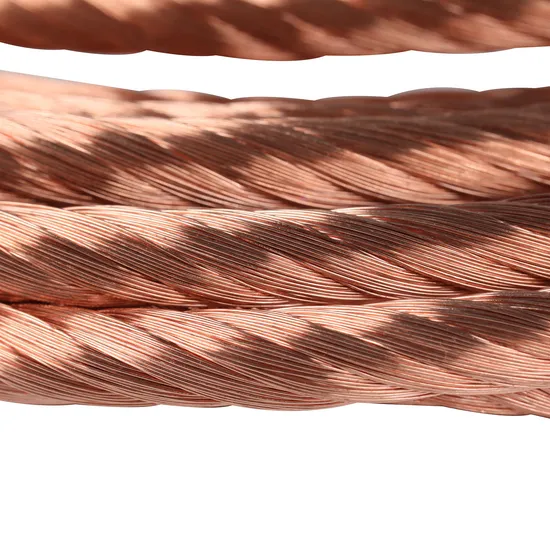

CCS Stranded & Bunched Wire
Conductor Size Designation	Nominal Diameter		Nominal Total Cross-Section	Minimun Rated Tensile Strength	Max.DC Resistance at 20ºC
AWG	Over All(MM)	Individual Wire(MM)	(MM²)	(KN)	(Ohm/km)
3NO.12	4.09	2.05	9.929	4.59	4.465
3NO.10	5.17	2.588	15.781	6.68	2.808
3NO.8	6.52	3.264	25.097	8.02	1.7662
7NO.10	7.77	2.588	36.83	9.15	1.244
7NO.9	8.71	2.906	46.44	11.5	0.9865
7NO.8	9.78	3.264	58.57	14.54	0.782
7NO.7	11.00	3.665	73.87	18.34	0.6202
7NO.6	12.34	4.115	93.1	23.13	0.492
7NO.5	13.87	4.62	117.42	29.14	0.3903
7NO.4	15.57	5.189	148.04	36.77	0.3094
19NO.8	16.31	3.264	185.97	30.45	0.2892
19NO.7	18.31	3.665	200.45	49.79	0.2294
19NO.6	20.57	4.115	252.71	62.77	0.1819
19NO.5	23.11	4.62	318.71	79.1	0.1443

Note:All Above Copper Clad Steel Wire Conforming To ASTM B910/B910M
Package Details

NO.	DIN130MM	DIN185MM	DIN250MM	DIN400MM	DIN630MM	DIN800MM
A	130MM	185MM	250MM	400MM	630MM	800MM
B	65MM	130MM	160MM	160MM	280MM	370MM
C	100MM	160MM	160MM	260MM	400MM	490MM
D	120MM	180MM	200MM	290MM	430MM	520MM
E	21MM	31MM	31MM	56MM	56MM	126MM

Certifications

Production Facility
Quality Control Centre

FAQ

Do you accept OEM or ODM?
Of course.We also have a professional design team who can assistant you to design.
What is minimum order quantity?
Usually accept 200 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks!
What is your sample policy?
1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs.
2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount.
What certification do you have?
Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications.
What information should I let you know if i want to get a quote?
Please offer the specification of the product if possible.Such as material,Package requests,Electric Conductivity,Resistance,Content list, quantity.etc.Or contact us directly just by a thought. What is the delivery date?
Our products are normally shipped about 25 days after order confirmation. But it may take longer or shorter up to different order quantity.
How can I know order status?
We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.
