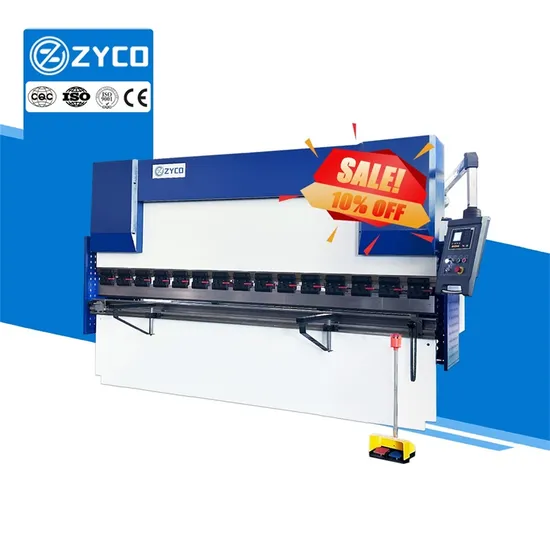

E21 80t3200 2 Axis Automobile Body Press Brake

Product Description

Product Description
This is an economical Press brake, which has an advantage in the same type of products. It has a simple structure, high accuracy, and high stability. This Press brake is widely recognized due to its cost -effective performance, and it can also meet the requirements of most bending processing scenarios. It is a cost -effective mechanical product.CNC CONTROL SYSTEMView More Products,click here...High-precision BackgaugeSafe foot switchStable performance component High strength moldHydraulic System Runs smoothly

Type	Nominal pressure	Working table and tooling length	Center distance between uprights	Throat Depth	Ram stroke	Max Open	Main motorpower	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L*W*H(mm)
80/20	800	2000	1550	400	200	400	7.5	2100*1750*2900
80/25	800	2500	2050	400	200	400	7.5	2600*1750*2900
80/32	800	3200	2600	400	200	400	7.5	3500*1750*2900
100/25	1000	2500	2050	400	200	400	7.5	2600*1750*2900
100/32	1000	3200	2600	400	200	400	7.5	3500*1750*2900
100/40	1000	4000	3550	400	200	400	7.5	4500*1700*3100
135/32	1350	3200	2600	400	200	400	7.5	3500*1700*3100
135/40	1350	4000	3150	400	200	400	7.5	4500*1700*3100
160/32	1600	3200	2600	400	200	400	11	3500*1700*3100
160/40	1600	4000	3150	400	200	400	11	4500*1700*3100
200/32	2000	3200	2600	400	250	485	15	3500*1900*3200
200/40	2000	4000	3150	400	250	485	15	4300*1900*3200
250/32	2500	3200	2600	400	250	485	15	3500*2100*5300
250/40	2500	4000	3150	400	250	485	15	4300*1900*3200
250/60	2500	6000	5050	400	250	485	15	6600*2100*3500
320/40	3200	4000	3150	400	250	570	22	4600*2200*3500
320/60	3200	6000	5050	400	250	570	22	6600*2200*3600
400/40	4000	4000	3450	400	300	570	37	5000*3600*5200
400/50	4000	5000	4050	400	300	570	37	6000*3600*5500
400/60	4000	6000	5050	400	300	570	37	7000*3650*5750
500/40	5000	4000	3150	400	300	600	45	5000*3650*6100
500/50	5000	5000	4050	400	300	600	45	5000*1950*3000
500/60	5000	6000	5050	400	300	600	45	7000*3650*5850
640/60	6400	6000	5050	400	320	640	55	7000*3610*5900
640/70	6400	7000	6050	400	320	640	55	8000*3800*6100
640/80	6400	8000	6200	400	320	640	55	8010*3900*6150
800/60	8000	6000	4760	500	400	820	2*37	7000*4000*6150
800/70	8000	7000	5760	500	400	820	2*37	8000*4000*4200
800/80	8000	8000	6200	500	400	820	2*37	8050*4100*6200

The twist -shaft Press brake greatly simplifies the mechanical structure while protecting its own accuracy, so that it has a high economic advantage and facilitates operation and daily maintenance. Compared with hand -handed operations, the production efficiency of the turbine Press brake is higher, which can not only save manpower and material resources, but also improve production efficiency and make the processing process more stable and reliable.NANJING ZYCO CNC MACHINERY CO.,LTD is committed to putting our customers first. With over 30 years of experience in manufacturing top-quality bending and shearing machines, we understand the unique needs of our clients. Our personalized approach ensures tailored solutions that meet specific requirements, backed by exceptional customer service. We believe in building long-lasting relationships by providing support and expertise from the initial consultation through to after-sales service.FAQ:
1. Are you a manufacturer? Can we visit your factory?
We are a manufacturer, located in Anhui, China. We have our own product design team.
You are welcome to visit our factory and check the quality of our machines on site, any problems will be solved on site at the first time.
2. What are the advantages of your machines? How can I trust the quality of your products?
The main configuration is imported high-quality products, and the professional product quality inspection team ensures the top quality, precision and life of the machine.
For example, Germany Bonsch Rexroth Valve Group, Germany Siemens Main Motor, Schneder Electric System, etc.
Once the test is qualified, our machine will be sent out. So the quality of our products is stable and reliable.
3. After placing an order, can you update the production process information in time?
After confirming your order, we will update you the production details by email and photos.
4. Can we be your agent?
Yes, we are looking for global agents, we will help agents to perfect the market and provide all services, such as machine technical problems or other after-sales problems, at the same time, you can get big discounts and commissions.
5. What payment methods do you accept?
You can pay to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance against copy of B/L.
6. What is the product warranty?
We offer warranty on our materials and workmanship. Our commitment is to make you satisfied with our products. Whether warranty or not, our company culture is to solve all customer problems and make everyone satisfied.
7. How about the shipping cost?
The shipping cost depends on the delivery method you choose. Express delivery is usually the fastest but also the most expensive way. For bulk goods, sea shipping is the best solution. We can only give you the exact shipping cost after we know the details of quantity, weight and method. Please contact us for more information.
8. Do you accept customer logos and customization?
We accept all kinds of customization, including logos and machines.
