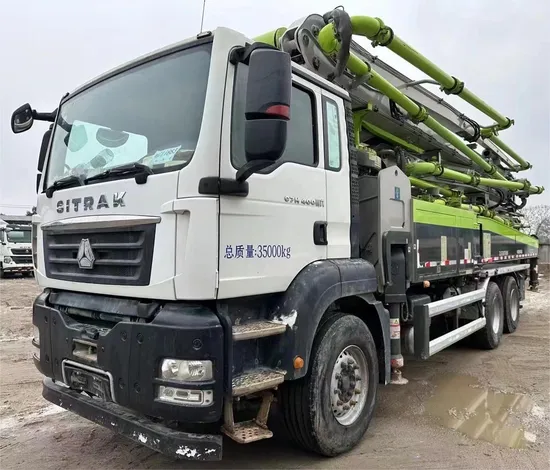

National VI 2020 November Zoomlion Shandeka 49m Used Concrete Mixer Pump Truck
| US$70,000.00-150,000.00 | 1 acres (MOQ) |
Basic Info.
Model NO.
ZLJ5350THBKF
Type
Cement Production Machinery
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
Other
Feeding Height
Other
Vibrating Amplitude
Other
Certification
ISO9001: 2000, CE
Condition
Used
Color
Green
Whole Length
11950mm
Whole Height
4000mm
Overall Width
2530mm
Weight
35000kg
Maximum Theoretical Throughput
180m³/H
Rated Working Pressure
36MPa
Turntable Rotation Angle
+270
Maximum Outlet Pressure
8.3/12MPa
Conveying Cylinder Inner Diameter
260mm
Transport Package
Complete Vehicle or Disassembly
Specification
11950*4000*2530mm
Trademark
other
Origin
Hunan, China
Production Capacity
5PC/Month
Product Description
National VI 2020 November Zoomlion Shandeka 49M Used Concrete Mixer Pump Truck Product Description:
| NO | Name | Parameter |
| Vehicle parameters | ||
| 1 | Total length | 11950mm |
| 2 | Overall width | 2530mm |
| 3 | Total height | 4000mm |
| 4 | All up weight | 35000kg |
| Pumping system parameters | ||
| Maximum Height | 48.6m | |
| Maximum Radius | 43.6m | |
| Maximum Depth | 34.6m | |
| Concrete theoretical displacement low pressure | 180m³/h | |
| Concrete theoretical displacement high pressure | 125m³/h | |
| Theoretical pumping pressure low | 8.3Mpa | |
| Theoretical pumping pressure High pressure | 12Mpa | |
| Conveying cylinder inner diameter: | 260mm | |
| Cylinder stroke | 2100mm | |
| Hydraulic system | Open type | |
| System oil pressure | 32Mpa | |
| Tank volume | 900L | |
| Tank volume | 700L | |
| Conveying pipe diameter | 125mm | |
| End hose length | 3m | |
| End hose pipe diameter | 125mm | |
| Chassis parameter | ||
| Chassis brand: | Sinotruk Shandeka | |
| Emission standard | Country VI | |
| Fuel tank capacity | 600L | |
| Displacement: | 12.94L | |
| Maximum speed | 90km/h | |
Changsha HuaYi Technology Co., LTD., NOTICE
Dear customer,our company specializes in the offline and online trading of used construction vehicles in China, so the concrete pump trucks displayed on the website may have been sold offline.Our database provides a large number of fresh used concrete pump trucks, used excavator used mixer trucks and other construction vehicles, please contact our sales directly to provide you with more accurate services.Thank you for your patience to browse!
