High Efficiency Egg Sorting Machine /Chicken Duck Egg Grading Machine
| US$3,000.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Application
Chicken
Power Source
Electric
Heating and Ventilation Equipment Type
None
Epidemic Prevention Equipment
None
Blade Type
None
Computerized
Non-Computerized
Certification
ISO9001:2008, CE, SGS
Condition
New
Size
2640*1600*1000(mm)
Service Time
10-15 Years
Warranty
3 Years
Weight
220
Material
Stainless Steel
Voltage
220V
Transport Package
Wooden Box
Specification
4000/5400/10000 eggs per hour
Trademark
Hightop
Origin
China
HS Code
8433601000
Production Capacity
100 Sets/Month
Product Description
high efficiency egg sorting machine /chicken duck egg grading machineInstruction of egg grading machine:
1. Workers put the eggs onto the roller belt manually

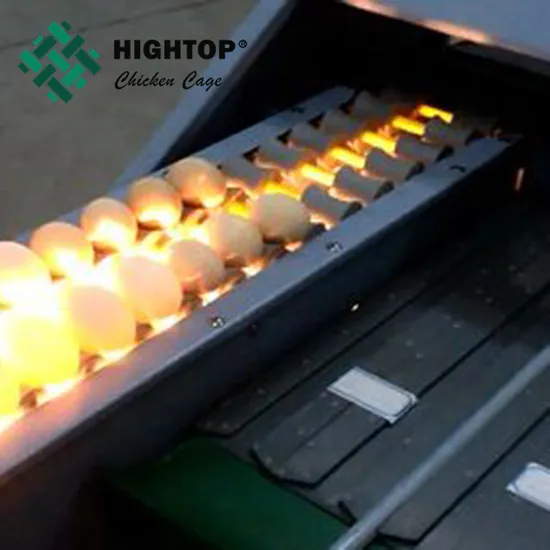

2. The roller belt will convey the eggs into the candling part, light will come out from under the eggs and the light will
penetrate the eggs and at the same time workers can select out stale eggs, cracked eggs, black-cored eggs, mildewed eggs;
3. After the candling, the good eggs will be conveyed into the grading part and they will be divided into several grades by
weight, eggs of different weight will fall down onto different channels and eggs of the same weight will fall down onto the same
channel, then grading is finished.
4. The workers collect the eggs from different channels into different egg trays manually
Automatic egg collection machine
Automatic egg collection machine is used to collect eggs. Saves time and manpower, and reduce the rate
of damage eggs. Egg damage rate: less than 0.1%.The automatic egg collection machine suitable for 3 tiers,
4 tiers, 5 tiers layer cage.
| Capacity | 10000eggs/hour | 5400pcs/h | 4000pcs/h |
| Material | Carbon steel | Carbon steel | Carbon steel |
| Precision | ±0.5g | ±0.5g | ±0.5g |
| Grade | 5 | 5 | 7 |
| Power | 600W | 200W | 200W |
| Voltage | 380V | 220V | 220V |
| L* W* H | 4200*3400*1050(mm) | 1820*1620*1050(mm) | 1438*1320*980(mm) |
| Net weight | 540KG | 260KG | 160KG |
| Gross weight | 750KG | 190KG | 200KG |
| Function | Grading eggs by weight | Grading eggs by weight | Grading eggs by weight |
| Q: I need a complete equipment system, and also need a best price, what should I do? |
| A: 1. Chicken House Size (length x width x height). |
| 2.If for Broiler Chicken, Quantity and Final Weight to Sell in Market. |
| 3.If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity. |
| 4.Maximum and Minimum Temperature of Farm Location. |
| 5.House Type: close type of two side bricks building wall with 36" fans and air inlets, or open type of using curtain in two sides. |
| Q: How many years it can use? |
| A: more than 15-20 Years |
| Q: Why choose fan? |
| Very effective to improve the plant's high temperature and hot environment,so that plant temperature quickly decline in 10 minutes. |
| Q: How is your Payment term? |
| A:Generally,our payment term is T/T 30% in advance and the balance 70% against the copy of B/L.Other payment term we can also discuss. |
| Q: How is your delivery time ? |
| A: We always prepare enough stock material for your urgent requirement,the delivery time is 7 days for all the stock material. We"ll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule. |
