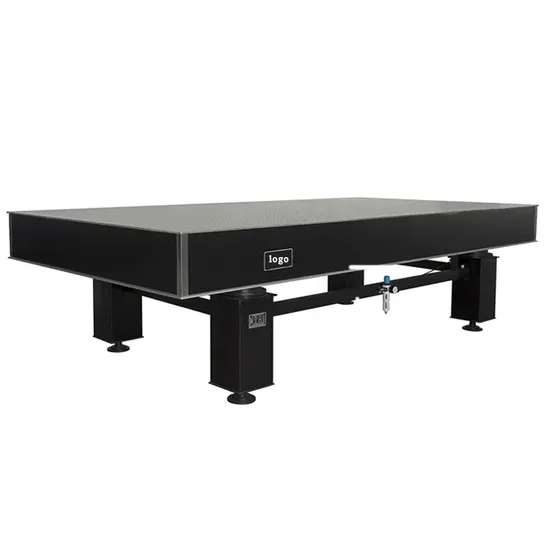

High Precision Air Float Vibration Isolation Optical Table

High Precision Air Float Vibration Isolation Optical Table

US$2,600.00 1 pieces (MOQ)

Basic Info.

Model NO.
ZDT-B
Range Finding
Optional
Warranty
1 Years
Leveling Typ
Automat
Material
Stainless Steel
Total Table Heigh
800mm
Vibration Isolation Structur
Air Springs & Pendulum Rod
Customized Support
OEM
Surfaced Roughnes
≤0.8μm, Matt Surface Finis
Voltage
220V
Working Air Pressur
0.2-0.4MPa
Re-Leveling Accurac
±0.1mm
Table Top Flatnes
≤0.05mm/M²
Power
Electric Air Pressure
Inherent Frequency
1.0-2.0Hz, Vertically; 1.0-1.5Hz, Horizontall
Compressed Air Sourc
Silent Compressor (Noise Level) <50dB
Trademark
Customizable
Origin
Jiangxi, China
HS Code
9031809090
Production Capacity
2000/Years

Product Description

Inherent Frequency 1.0-2.0Hz, vertically; 1.0-1.5Hz, horizontall
Vibration Isolation Structur Air springs & pendulum rod
Leveling Typ Automat
Vibration Damping Typ Porous quasi-laminar flow damping element with diffuse
Total Table Heigh 800mm
Working Air Pressur 0.2-0.4MPa
Compressed Air Sourc Silent compressor (noise level) <50dB
Vibration Isolating Efficiency 8692%@5Hz, 9095%@10Hz, vertically 8494%@5Hz, 9298%@10Hz, horizontall
Re-leveling Accurac ±0.1mm
Table Top Flatnes ≤0.05mm/m²
Surfaced Roughnes ≤0.8μm, matt surface finis
Isolator Height Adjustment Rang ±10mm
Mounting Holes M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm
Top Skin 5mm
Bottom Skin 4mm
Material Stainless Steel
Products Description
Model Dimension(mm) Inherent Frequency Height(mm) Load capacity(Kg)
ZDT-B09-06 900×600 Vertical:2.0Hz Horizontal:2.0Hz 800 135
ZDT-B10-08 1000×800 Vertical:2.0Hz Horizontal:2.0Hz 800 200
ZDT-B12-09 1200×900 Vertical:2.0Hz Horizontal:2.0Hz 800 270
ZDT-B15-10 1500×1000 Vertical:2.0Hz Horizontal:2.0Hz 800 375
ZDT-B18-10 1800×1000 Vertical:1.8Hz Horizontal:2.0Hz 800 450
ZDT-B20-10 2000×1000 Vertical:1.8Hz Horizontal:1.8Hz 800 500
ZDT-B12-12 1200×1200 Vertical:2.0Hz Horizontal:2.0Hz 800 360
ZDT-B15-12 1500×1200 Vertical:2.0Hz Horizontal:2.0Hz 800 450
ZDT-B18-12 1800×1200 Vertical:1.8Hz Horizontal:1.8Hz 800 540
ZDT-B20-12 2000×1200 Vertical:1.8Hz Horizontal:1.8Hz 800 600
ZDT-B24-12 2400×1200 Vertical:1.5Hz Horizontal:1.8Hz 800 720
ZDT-B30-12 3000×1200 Vertical:1.5Hz Horizontal:1.8Hz 800 900
ZDT-B35-12 3500×1200 Vertical:1.5Hz Horizontal:1.8Hz 800 1050
ZDT-B40-12 4000×1200 Vertical:1.2Hz Horizontal:1.8Hz 800 1200
ZDT-B50-12 5000×1200 Vertical:1.2Hz Horizontal:1.5Hz 800 1500
ZDT-B60-12 6000×1200 Vertical:1.2Hz Horizontal:1.5Hz 800 2000
Certifications Company Profile Lidetai technology can design for you with the solutions for different experimental environment, different sites and different experimental conditions. Lidetai is a professional company specializing in researching and development, design, production, sales and service. We are the only enterprise who set and comply the "precision isolation" production standard and shaped the unique culture of our own. Since 2000, Lidetai formally established sale offices and after-sales service center in six major district of China. For many years, our clients from the universities and scientific research institutions ranging from the fields of physics, laser, optical, mechanical, electronic information to precision measurement, precision processing, biological engineering, and electro physiology. Sticking to the rigorous practical attitude, we build up a very good partnership with our clients. We are doing our best to make our clients satisfied. Our Advantages Shipping & Delivery contact us
