28t 12 M³ Electric Hydraulic Single Rope Radio Remote Control Grab Bucket for Marine and Ship Use with BV CCS Rina ABS Certificate

Product Description

Product Description
The electric hydraulic grab bucket is masterfully engineered for the efficient handling of a diverse range of powdery and fine bulk materials. Seamlessly manage chemicals, fertilizer, grain, coal, coke, iron ore, sand, particle construction materials, and even crushed rocks with unmatched precision.
This versatile grab has found its extensive applications in various industries including ports, steel plants, power stations, ships, and garbage treatment facilities. It operates in perfect harmony with tower cranes, ship cranes, unloaders, traveling cranes, and many other crane varieties. The grab is empowered by its own advanced hydraulic system, featuring key components from globally recognized brands, ensuring exceptional performance and reliability.
This electric hydraulic grab bucket boasts a simple yet robust design that ensures ease of operation and remarkable stability, even when working in the most challenging conditions.
Product Parameters

Type(MHD)	Power (kw)		Dead weight (Kg)	SWL (t)	Volume (m3)	Max. pressure(bar)	Close time(s)		Overall size(mm)
	380V50Hz	440V60Hz					380V50Hz	440V60Hz	A	B	C	D	E
MHD15.0-1250	15.0	18.0	1360	3.6	1.25	180	8	6.5	2100	2010	1640	1950	1400
MHD15.0-1600			1520	4.4	1.6	180	8	6.5	2120	2080	1740	2080	1540
MHD18.5-2000	18.5	22.0	1870	5.5	2.0	180	10	8	2320	2200	1900	2240	1700
MHD18.5-2500			2030	6.6	2.5	180	10	8	2360	2320	2080	2460	1860
MHD22.0-3000	22.0	26.0	3080	8.5	3.0	200	13	11	2960	2890	2200	2710	1960
MHD22.0-4000			3560	10.8	4.0	200	13	11	3050	2950	2200	2800	2300
MHD30.0-5000	30.0	35.0	4860	13.9	5.0	200	17	14.5	3380	3070	2520	3020	2300
MHD30.0-6300			5180	16.5	6.3	200	17	14.5	3500	3100	2670	3240	2500
MHD30.0-8000			6650	21.1	8.0	200	19	16	3500	3220	2920	3400	2640
MHD37.0-9000	37.0	44.0	8160	24.4	9.0	200	19	16	3760	3300	3050	3700	2940
MHD37.0-10000			8350	26.4	10.0	200	19	16	3760	3300	3050	3700	3250
MHD37.0-11000			8520	28.3	11.0	200	19	16	3760	3300	3050	3700	3560
MHD45.0-12000	45.0	54.0	9880	31.5	12.0	220	19	16	4100	3820	3280	3960	3430
MHD45.0-13000			10210	33.6	13.0	220	19	16	4100	3820	3280	3960	3700
MHD45.0-14000			10500	35.7	14.0	220	19	16	4100	3820	3280	3960	3980
MHD55.0-15000	55.0	66.0	13720	40.7	15.0	220	19	16	4420	4120	3560	4210	3650
MHD55.0-16500			14250	44.0	16.5	220	19	16	4420	4120	3560	4210	4120
MHD55.0-18000			14710	47.1	18.0	220	21	19	4580	4130	3780	4420	4200

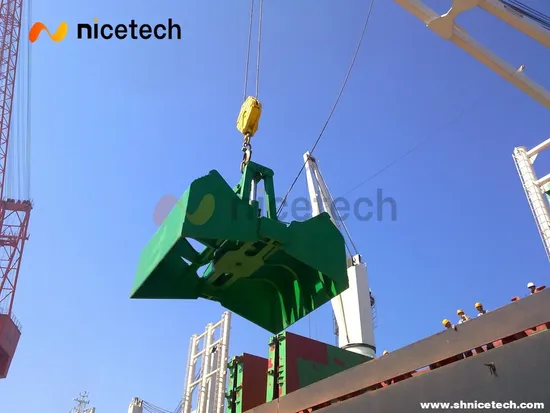

Operation on site
electric hydraulic grab bucket delivery on board and operation on board , delivery test at shipyard
Packaging & Shipping
Related Products
other type electric hydraulic grab which we have delivery on board/ship/ port/wharf. your reference
Detailed Photos
Our Service
Act as a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.1.Pre-sale services:a: Design customised project for clients.b: Design and manufcture products according to clients special requirement.c: Train technical personnel for clients.2.Services during the sale:a: Help clients to find reasonable freight forwarders ahead of delivery.b: Help clients to draw solving plans.3.After-sale services:a:Assist clients to prepare for the construction scheme.b:Install and debug equipment.c:Train the first-lin operators.d: Examine equipment.e: Take initiative to eliminate the troubles immediately.f:Provide techical exchanging.
FAQ
If you are intrested in our grab,please send us your detailed specifications as follow:
1,what's your desired cubage of the grab?
2,what's the SWL of your crane ?
3,what kind cargo will be discharged? or advise the density of the cargo
4,what's kind certification request ?
we will offer you the most suitbale soluation and the best prices ,these specifications above can make it clear about your requirements! so i sincerely welcome your kinldy inquiry with the detialed specification
