Ribbon Mixer for Coconut Coffee /House Coffee Powder
| US$30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DH-JD
Application Area
Food
Certification
CE
Condition
New
Control System
No
Cooling Method
No
Heating Method
No
Mixing Capacity
1000L & Above
Speed Control
Single Speed
Speed Range
30-39 R/min
Stirring Type
Paddle
Temperature Control
No
Working
Shear Mixer
Powder Mixing Machine
200L-2000L
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating Type
Continuous Operating
Transport Package
Plywood Wooden Carton
Specification
CE
Trademark
DAHEPACK
Origin
China
HS Code
84743900
Production Capacity
30units/Month
Product Description
Robbion Mixer, Robbon Blender, Mixer , Blending machine,Horizontal Robbon mixer
Milk tea Milk cocoa Mixer Blender Ribbon Blender

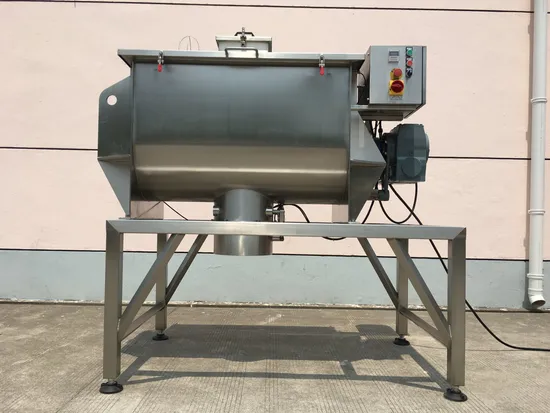

The ribbon blender mixes free-flowing raw materials within a U-shaped trough. A horizontal agitator consisting of precisely pitched inner and outer helical ribbons moves materials in a well-balanced axial and radial flow pattern. High-quality ribbon blenders feature tightly controlled clearances between the through surfaces and agitator tips. Good design and expert fabrication ensure fast repeatable mixing, easy clean-up, low maintenance, and long service life
Ribbon Blenders consist of U shape horizontal trough and specially fabricated ribbon agitator.Effective mixing load(40%-80%) High mixing speed and short uniform time. Mixing speed is around 5-15min. All stainless steel 304 material Full Mirror polished mixing tank inside, as well as ribbon and shaft Safety switch, safety grid Discharge gate can be manual or pneumatically operated for direct filling in bags or dumping into storage bin
Standard Specifications:
| Model | DH-JD-200 | DH-JD-300 | DH-JD-500 | DH-JD-1000 | DH-JD-1500 | DH-JD-2000 |
| Full Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L |
| Turning Speed | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm |
| Mixing Vessel | 3mm | 3mm | 3mm | 4mm | 5mm | 6mm |
| Wall Plate | 6mm | 8mm | 8mm | 8mm | 8mm | 12mm |
| Main Shaft | 57*6 | 76*6 | 76*8 | 89*8 | 102*8 | 114*10 |
| Mixing Blade | 6mm | 6mm | 6mm | 8mm | 10mm | 12mm |
| Whole Length | 1400 | 1530 | 1700 | 2000 | 2400 | 2600 |
| Whole Width | 900 | 1000 | 1200 | 1300 | 1400 | 1500 |
| Total Height | 1450 | 1550 | 1700 | 1960 | 2050 | 2200 |
| Total Weight | 250KGS | 350KGS | 500KGS | 700KGS | 1000KGS | 1300KGS |
| Total Power | 4KW | 5.5KW | 7.5KW | 11KW | 15KW | 22KW |
| Air Consumption | 4-6Bars | |||||
| Power Supply | 3 P AC208-415V 50/60HZ | |||||
